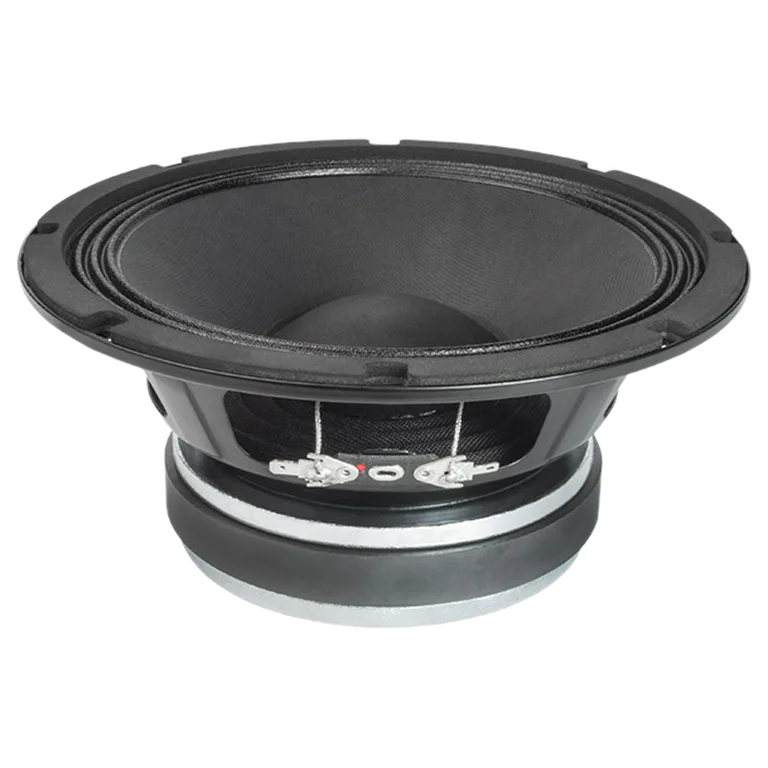

FaitalPRO 8FE300 (8 Ohm) standard | Fs 70 Hz, 92.8 dB, Qts 0.440 | LoudspeakerLab

Name: FaitalPRO 8FE300 (8 Ohm) standard | Fs 70 Hz, 92.8 dB, Qts 0.440 | LoudspeakerLab
Brand: FaitalPRO
SKU: 8FE300 (8 Ohm)
Price: 36.27 GBP
Availability: InStock

FaitalPRO 8FE300 (8 Ohm) standard measurements on LoudspeakerLab. 92.8 dB sensitivity. Fs 70 Hz. Qts 0.440. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 70 Hz; Qts: 0.440; Qes: 0.460; Qms: 13.400; Vas: 15.70 L; Sd: 223.0 cm²; Re: 5.80 Ω; Le: 0.55 mH; Sensitivity: 92.8 dB; Nominal Z: 7.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 69

Usable passband

Scored passband 104 Hz–3.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~15.5 L · Fb 71 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $36.27 GBP
parts_express — $118.50 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
