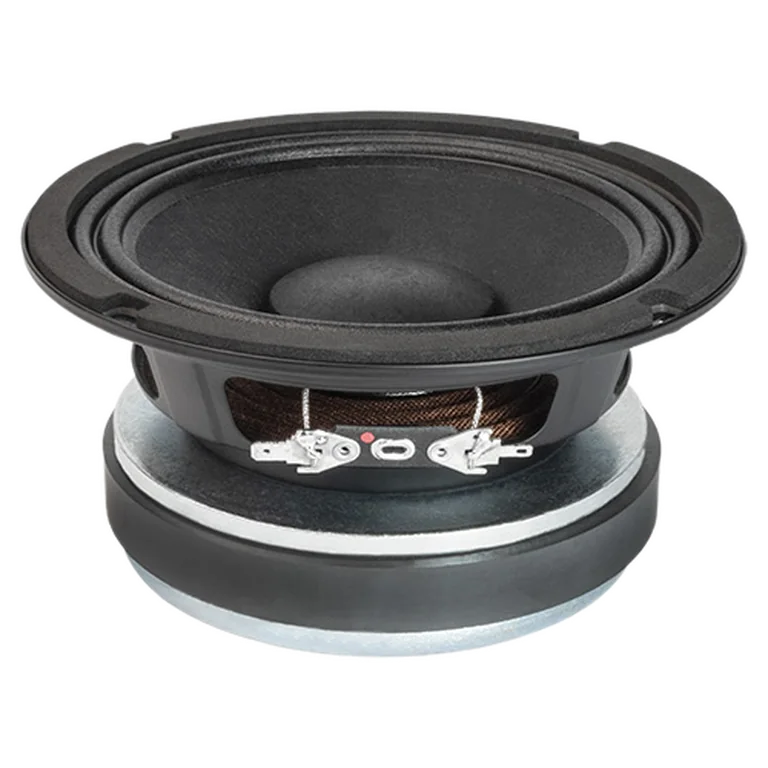

FaitalPRO 6FE300 (8 Ohm) standard | Fs 100 Hz, 92.6 dB, Qts 0.460 | LoudspeakerLab

Name: FaitalPRO 6FE300 (8 Ohm) standard | Fs 100 Hz, 92.6 dB, Qts 0.460 | LoudspeakerLab
Brand: FaitalPRO
SKU: 6FE300 (8 Ohm)
Price: 37.22 GBP
Availability: InStock

FaitalPRO 6FE300 (8 Ohm) standard measurements on LoudspeakerLab. 92.6 dB sensitivity. Fs 100 Hz. Qts 0.460. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 100 Hz; Qts: 0.460; Qes: 0.480; Qms: 10.500; Vas: 4.70 L; Sd: 138.0 cm²; Re: 5.30 Ω; Le: 0.40 mH; Sensitivity: 92.6 dB; Nominal Z: 6.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 67

Usable passband

Scored passband 151 Hz–4.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~5.1 L · Fb 98 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $37.22 GBP
parts_express — $101.50 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
