FaitalPRO 6FE300 (4 Ohm) standard | Fs 98 Hz, 92.0 dB, Qts 0.410 | LoudspeakerLab

FaitalPRO 6FE300 (4 Ohm) standard measurements on LoudspeakerLab. 92.0 dB sensitivity. Fs 98 Hz. Qts 0.410. Evidence grade C+ (57.0/100).

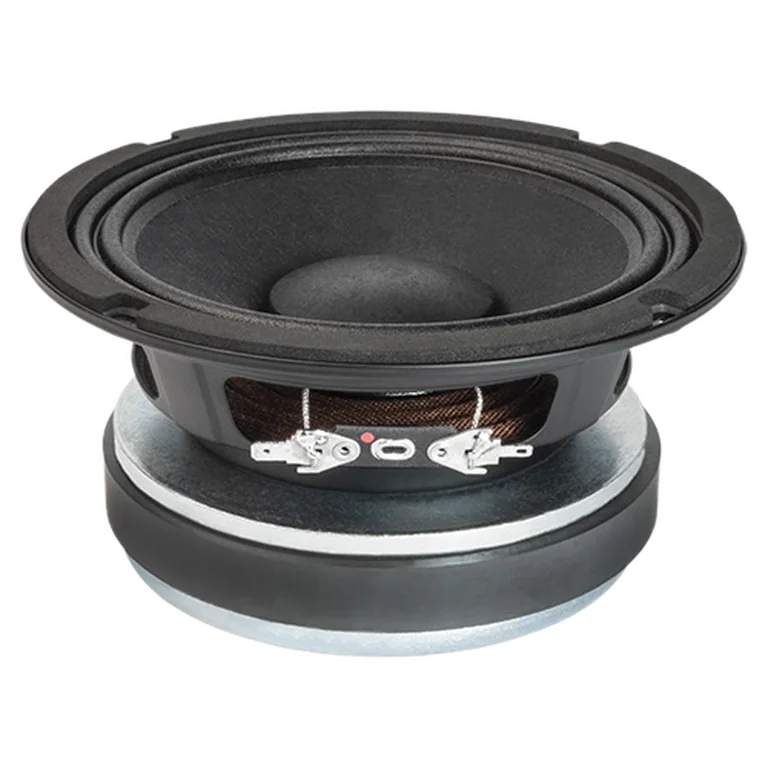

Preview

Thiele-Small parameters

Fs: 98 Hz; Qts: 0.410; Qes: 0.430; Qms: 9.800; Vas: 4.40 L; Sd: 138.0 cm²; Re: 3.00 Ω; Le: 0.26 mH; Sensitivity: 92.0 dB; Nominal Z: 4.2 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 74

Usable passband

Scored passband 143 Hz–3.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~3.7 L · Fb 106 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
