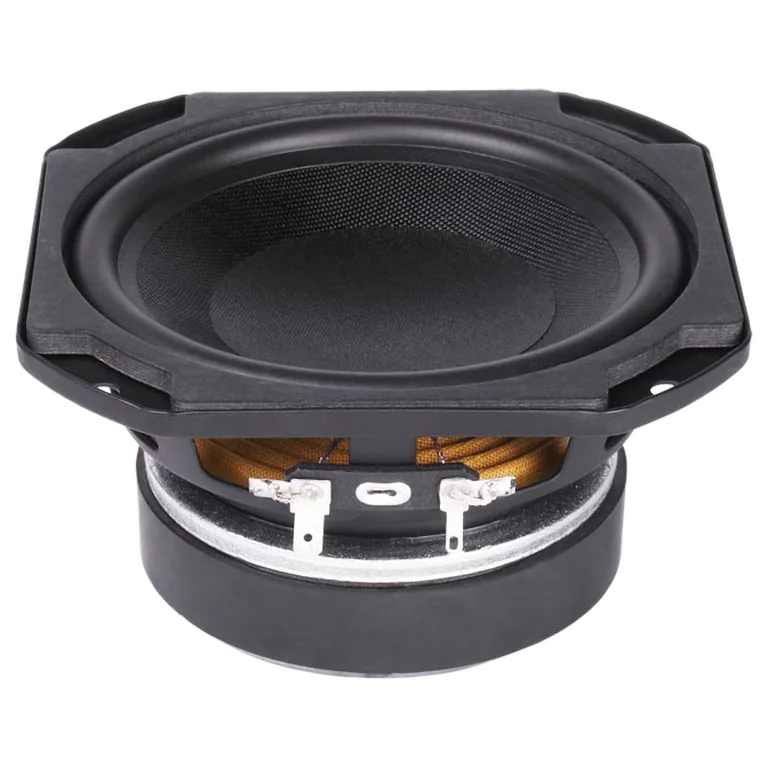

FaitalPRO 5FE120 (8 Ohm) standard | Fs 65 Hz, 88.9 dB, Qts 0.480 | LoudspeakerLab

Thiele-Small parameters

Fs: 65 Hz; Qts: 0.480; Qes: 0.510; Qms: 7.400; Vas: 5.40 L; Sd: 84.0 cm²; Re: 5.40 Ω; Le: 0.41 mH; Sensitivity: 88.9 dB; Nominal Z: 6.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 68

Usable passband

Scored passband 107 Hz–6.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~6.5 L · Fb 61 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• bluearan — $20.41 GBP
• parts_express — $55.75 USD
• soundimports — $33.02 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
