FaitalPRO 5FE105 (8 Ohm) standard | Fs 65 Hz, 88.7 dB, Qts 0.450 | LoudspeakerLab

FaitalPRO 5FE105 (8 Ohm) standard measurements on LoudspeakerLab. 88.7 dB sensitivity. Fs 65 Hz. Qts 0.450. Evidence grade C+ (57.0/100).

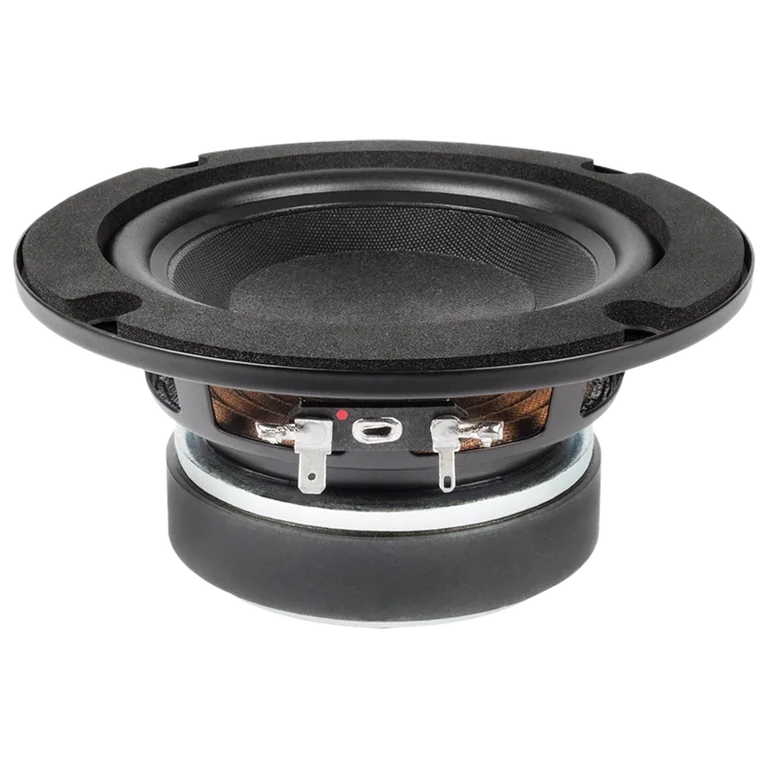

Preview

Thiele-Small parameters

Fs: 65 Hz; Qts: 0.450; Qes: 0.480; Qms: 8.200; Vas: 5.70 L; Sd: 84.0 cm²; Re: 5.40 Ω; Le: 0.53 mH; Sensitivity: 88.7 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 78

Usable passband

Scored passband 107 Hz–3.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~5.9 L · Fb 65 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
