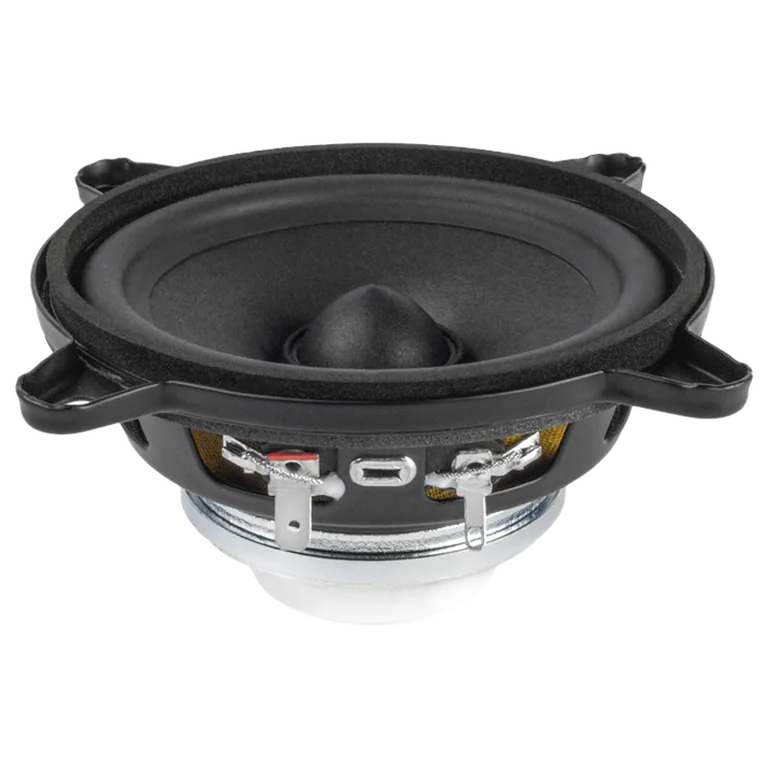

FaitalPRO 4FE42 (8 Ohm) standard | Fs 110 Hz, 93.0 dB, Qts 0.470 | LoudspeakerLab

Thiele-Small parameters

Fs: 110 Hz; Qts: 0.470; Qes: 0.500; Qms: 8.000; Vas: 1.90 L; Sd: 50.9 cm²; Re: 5.40 Ω; Le: 0.07 mH; Sensitivity: 93.0 dB; Nominal Z: 6.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 62

Usable passband

Scored passband 180 Hz–8.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.2 L · Fb 106 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• bluearan — $23.87 GBP
• parts_express — $67.00 USD
• soundimports — $39.63 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
