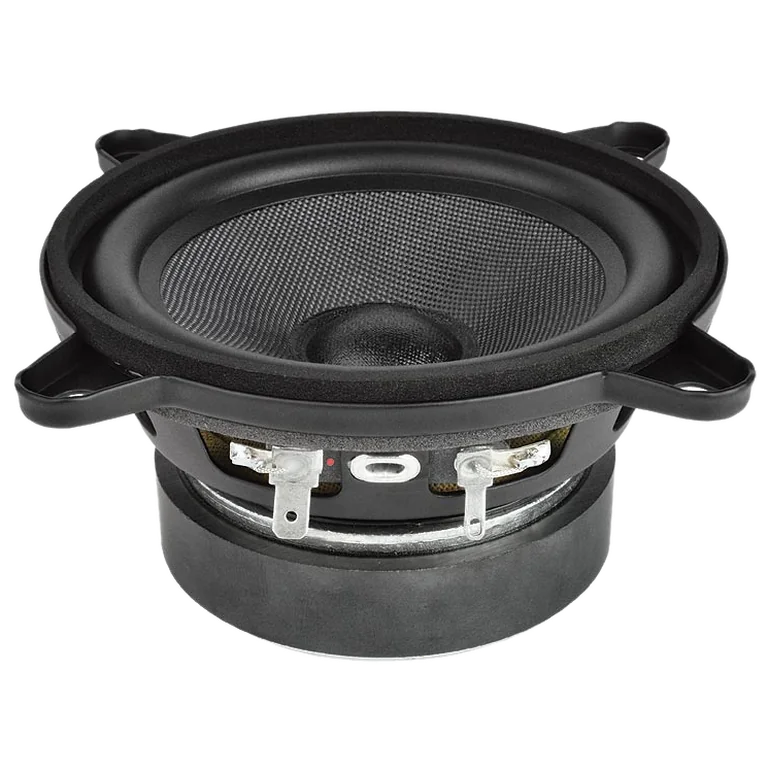

FaitalPRO 4FE35 (16 Ohm) standard | Fs 100 Hz, 93.9 dB, Qts 1.160 | LoudspeakerLab

Thiele-Small parameters

Fs: 100 Hz; Qts: 1.160; Qes: 1.670; Qms: 3.800; Vas: 2.30 L; Sd: 51.9 cm²; Re: 12.30 Ω; Le: 0.10 mH; Sensitivity: 93.9 dB; Nominal Z: 13.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 50

Usable passband

Scored passband 147 Hz–7.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~6.1 L

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• bluearan — $13.09 GBP
• parts_express — $35.75 USD
• soundimports — $22.27 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
