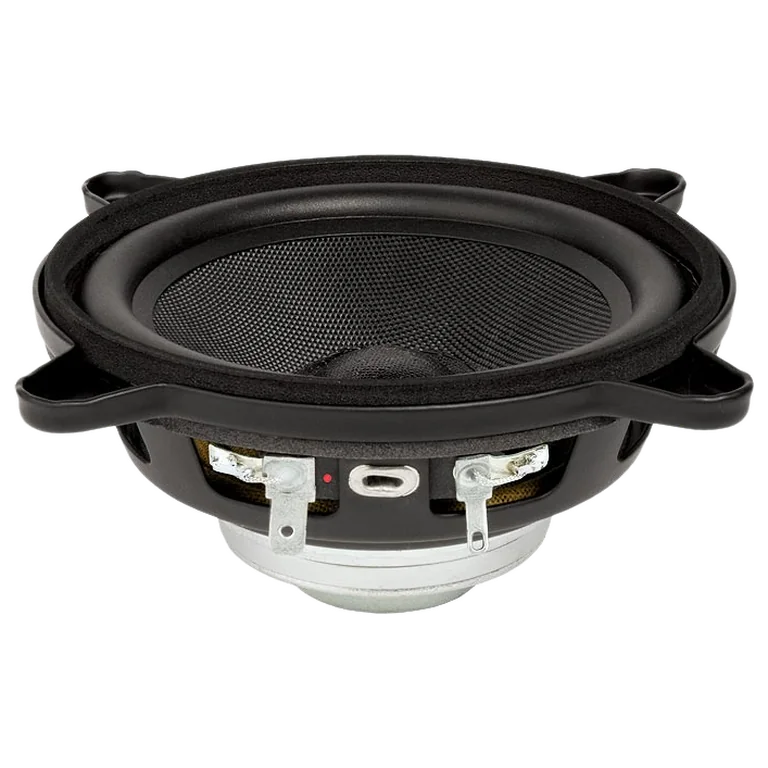

FaitalPRO 4FE32 (8 Ohm) standard | Fs 100 Hz, 92.0 dB, Qts 0.610 | LoudspeakerLab

Name: FaitalPRO 4FE32 (8 Ohm) standard | Fs 100 Hz, 92.0 dB, Qts 0.610 | LoudspeakerLab
Brand: FaitalPRO
SKU: 4FE32 (8 Ohm)
Price: 19.00 GBP
Availability: InStock

FaitalPRO 4FE32 (8 Ohm) standard measurements on LoudspeakerLab. 92.0 dB sensitivity. Fs 100 Hz. Qts 0.610. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 100 Hz; Qts: 0.610; Qes: 0.700; Qms: 4.900; Vas: 2.30 L; Sd: 51.9 cm²; Re: 6.50 Ω; Le: 0.18 mH; Sensitivity: 92.0 dB; Nominal Z: 7.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 49

Usable passband

Scored passband 156 Hz–16.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Sealed ~4.3 L

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $19.00 GBP
parts_express — $51.25 USD
soundimports — $30.54 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
