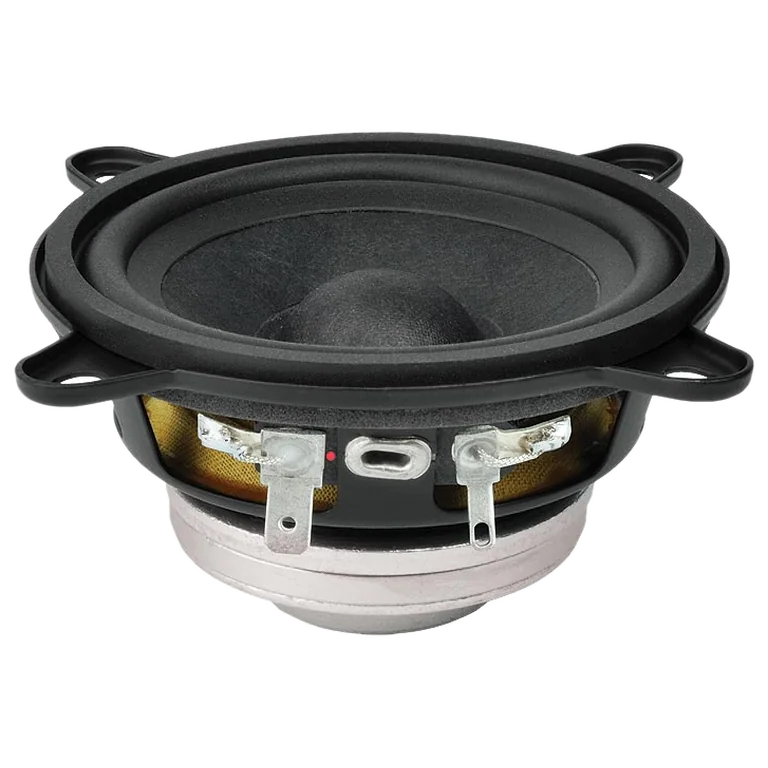

FaitalPRO 3FE22 (8 Ohm) standard | Fs 110 Hz, 92.0 dB, Qts 0.470 | LoudspeakerLab

Name: FaitalPRO 3FE22 (8 Ohm) standard | Fs 110 Hz, 92.0 dB, Qts 0.470 | LoudspeakerLab
Brand: FaitalPRO
SKU: 3FE22 (8 Ohm)
Price: 15.54 GBP
Availability: InStock

FaitalPRO 3FE22 (8 Ohm) standard measurements on LoudspeakerLab. 92.0 dB sensitivity. Fs 110 Hz. Qts 0.470. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 110 Hz; Qts: 0.470; Qes: 0.520; Qms: 5.000; Vas: 1.30 L; Sd: 33.0 cm²; Re: 6.20 Ω; Le: 0.15 mH; Sensitivity: 92.0 dB; Nominal Z: 7.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 53

Usable passband

Scored passband 10 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~1.5 L · Fb 106 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $15.54 GBP
parts_express — $42.00 USD
soundimports — $24.75 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
