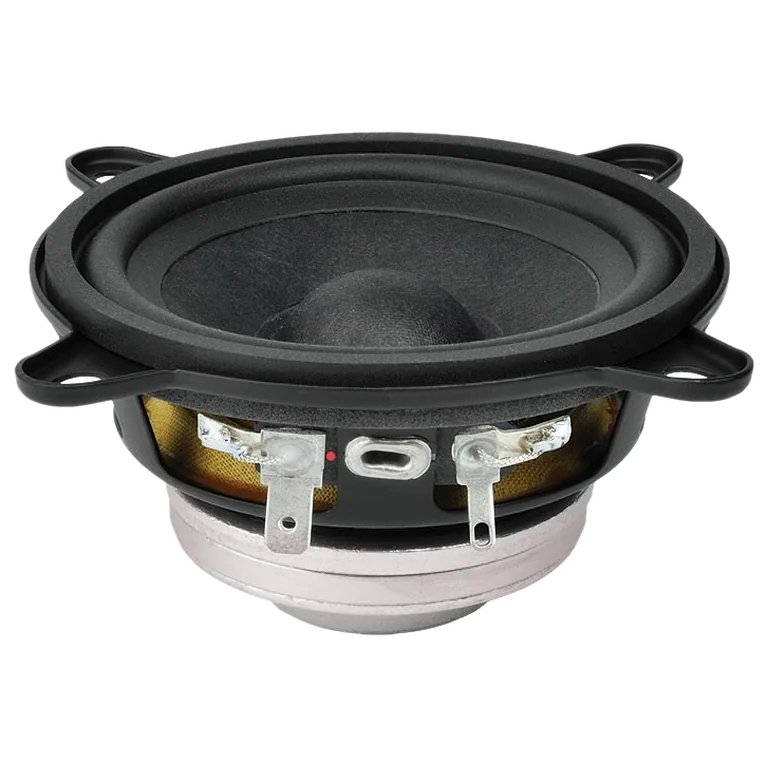

FaitalPRO 3FE22 (16 Ohm) standard | Fs 110 Hz, 91.8 dB, Qts 0.560 | LoudspeakerLab

Thiele-Small parameters

Fs: 110 Hz; Qts: 0.560; Qes: 0.640; Qms: 4.600; Vas: 1.40 L; Sd: 33.0 cm²; Re: 12.30 Ω; Le: 0.10 mH; Sensitivity: 91.8 dB; Nominal Z: 13.1 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 48

Usable passband

Scored passband 160 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~2.4 L · Fb 92 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• bluearan — $15.69 GBP
• parts_express — $42.00 USD
• soundimports — $24.75 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
