FaitalPRO 18XL1600 (8 Ohm) standard | Fs 32 Hz, 93.9 dB, Qts 0.360 | LoudspeakerLab

FaitalPRO 18XL1600 (8 Ohm) standard measurements on LoudspeakerLab. 93.9 dB sensitivity. Fs 32 Hz. Qts 0.360. Evidence grade C+ (57.0/100).

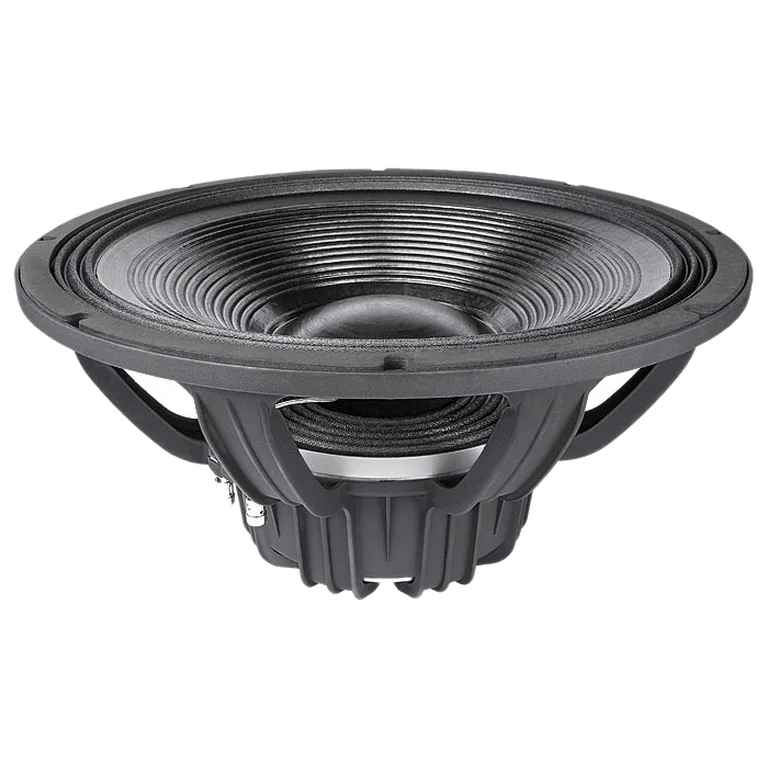

Preview

Thiele-Small parameters

Fs: 32 Hz; Qts: 0.360; Qes: 0.370; Qms: 9.300; Vas: 211.40 L; Sd: 1212.0 cm²; Re: 5.40 Ω; Le: 1.45 mH; Sensitivity: 93.9 dB; Nominal Z: 7.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 62

Usable passband

Scored passband 49 Hz–1.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~136.9 L · Fb 39 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
