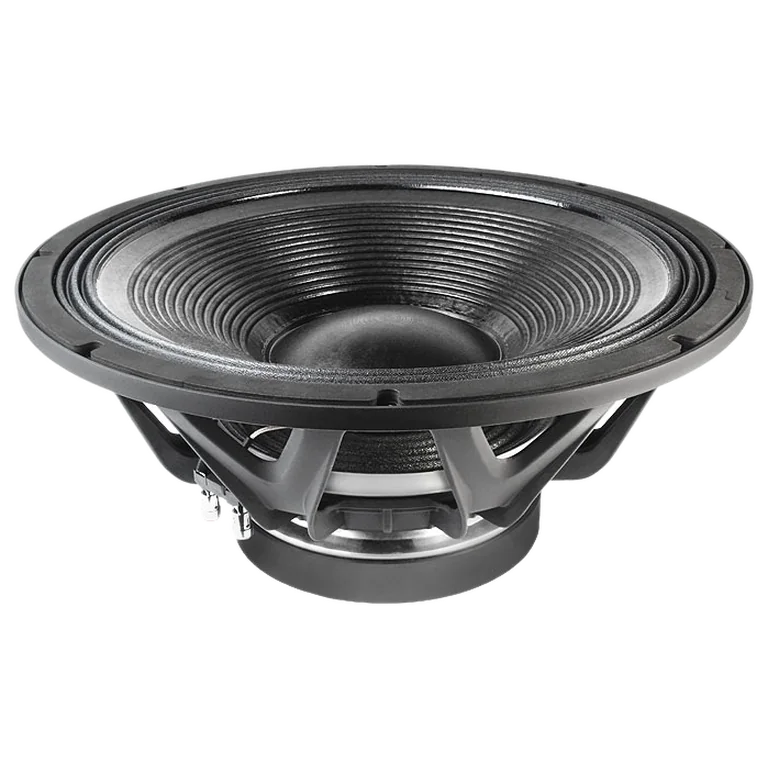

FaitalPRO 18HW1070 (4 Ohm) standard | Fs 32 Hz, 91.9 dB, Qts 0.330 | LoudspeakerLab

Thiele-Small parameters

Fs: 32 Hz; Qts: 0.330; Qes: 0.340; Qms: 10.600; Vas: 191.50 L; Sd: 1212.0 cm²; Re: 3.00 Ω; Le: 1.26 mH; Sensitivity: 91.9 dB; Nominal Z: 4.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 57

Usable passband

Scored passband 49 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~104.8 L · Fb 43 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $728.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
