FaitalPRO 15XL1200 (8 Ohm) standard | Fs 40 Hz, 93.1 dB, Qts 0.400 | LoudspeakerLab

FaitalPRO 15XL1200 (8 Ohm) standard measurements on LoudspeakerLab. 93.1 dB sensitivity. Fs 40 Hz. Qts 0.400. Evidence grade C+ (57.0/100).

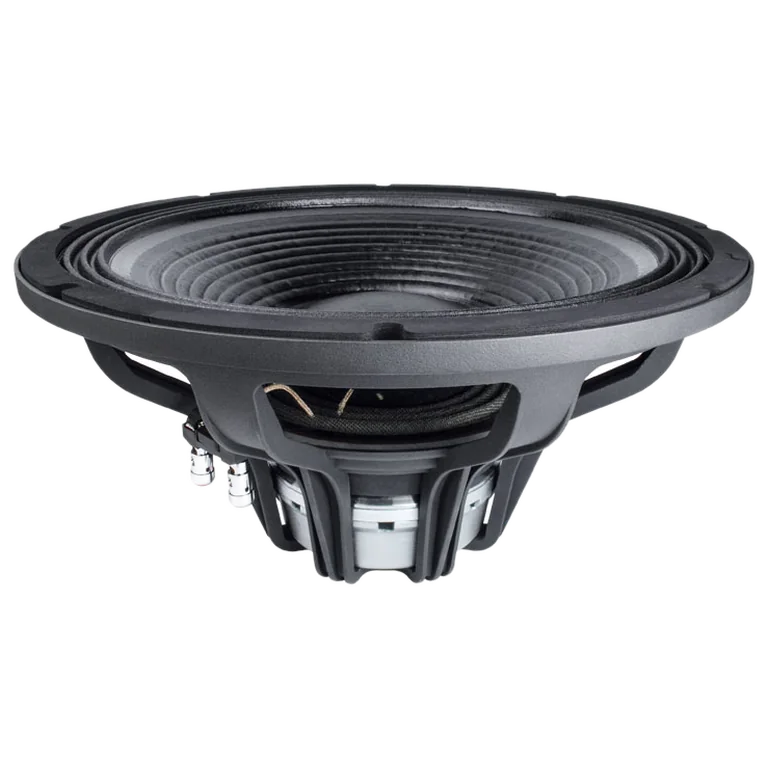

Preview

Thiele-Small parameters

Fs: 40 Hz; Qts: 0.400; Qes: 0.410; Qms: 10.900; Vas: 86.90 L; Sd: 841.0 cm²; Re: 5.00 Ω; Le: 1.34 mH; Sensitivity: 93.1 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 62

Usable passband

Scored passband 62 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~70.1 L · Fb 44 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
