FaitalPRO 15FX560 (8 Ohm) standard | Fs 38 Hz, 96.3 dB, Qts 0.300 | LoudspeakerLab

FaitalPRO 15FX560 (8 Ohm) standard measurements on LoudspeakerLab. 96.3 dB sensitivity. Fs 38 Hz. Qts 0.300. Evidence grade C+ (57.0/100).

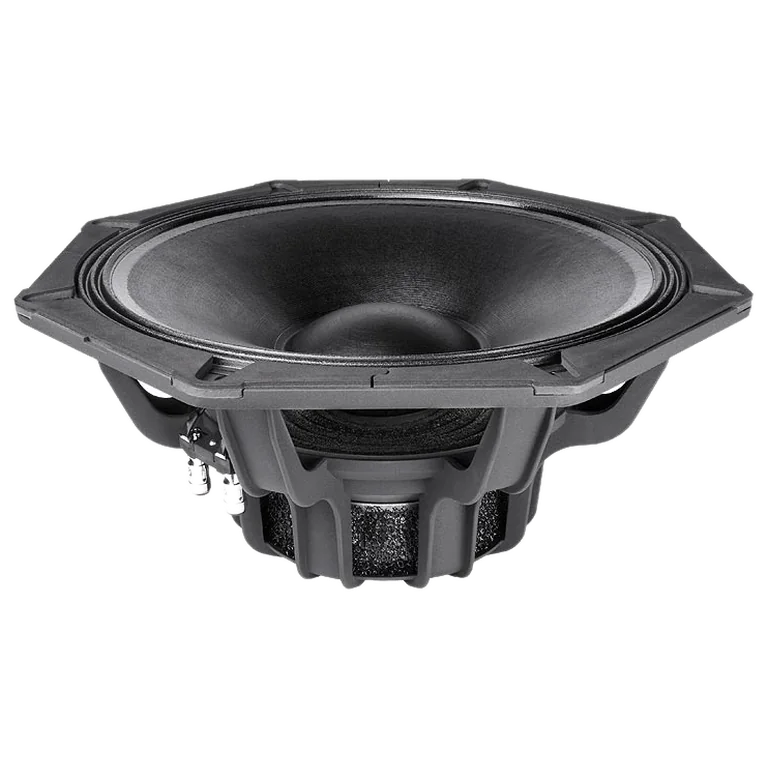

Preview

Thiele-Small parameters

Fs: 38 Hz; Qts: 0.300; Qes: 0.310; Qms: 6.800; Vas: 159.00 L; Sd: 864.0 cm²; Re: 5.20 Ω; Le: 0.64 mH; Sensitivity: 96.3 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 55

Usable passband

Scored passband 64 Hz–2.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~74.3 L · Fb 55 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
