FaitalPRO 15FH530 (8 Ohm) standard | Fs 39 Hz, 95.6 dB, Qts 0.350 | LoudspeakerLab

FaitalPRO 15FH530 (8 Ohm) standard measurements on LoudspeakerLab. 95.6 dB sensitivity. Fs 39 Hz. Qts 0.350. Evidence grade C+ (57.0/100).

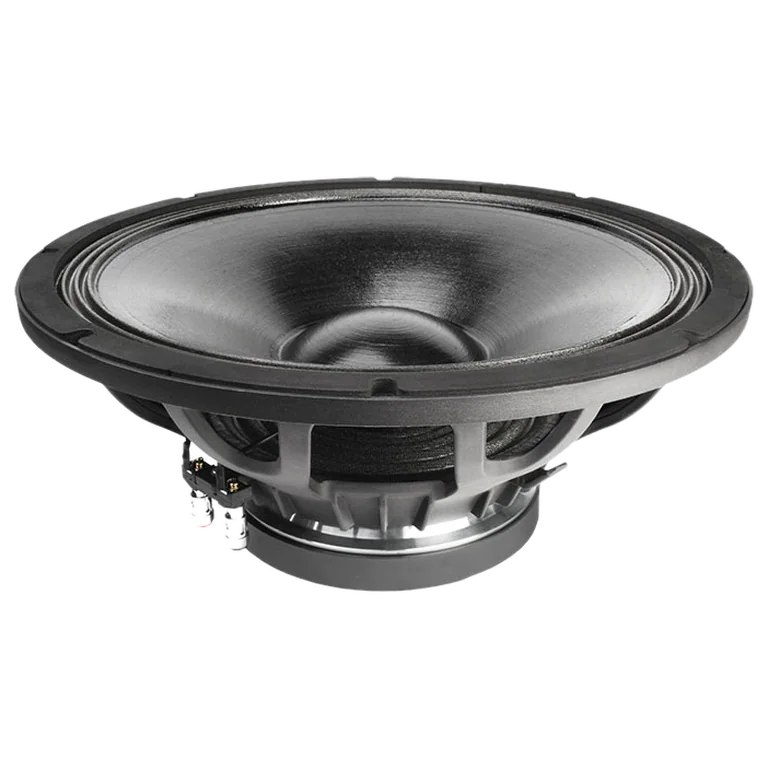

Preview

Thiele-Small parameters

Fs: 39 Hz; Qts: 0.350; Qes: 0.360; Qms: 8.900; Vas: 140.60 L; Sd: 864.0 cm²; Re: 5.10 Ω; Le: 1.10 mH; Sensitivity: 95.6 dB; Nominal Z: 6.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 62

Usable passband

Scored passband 60 Hz–2.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~86.8 L · Fb 49 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
