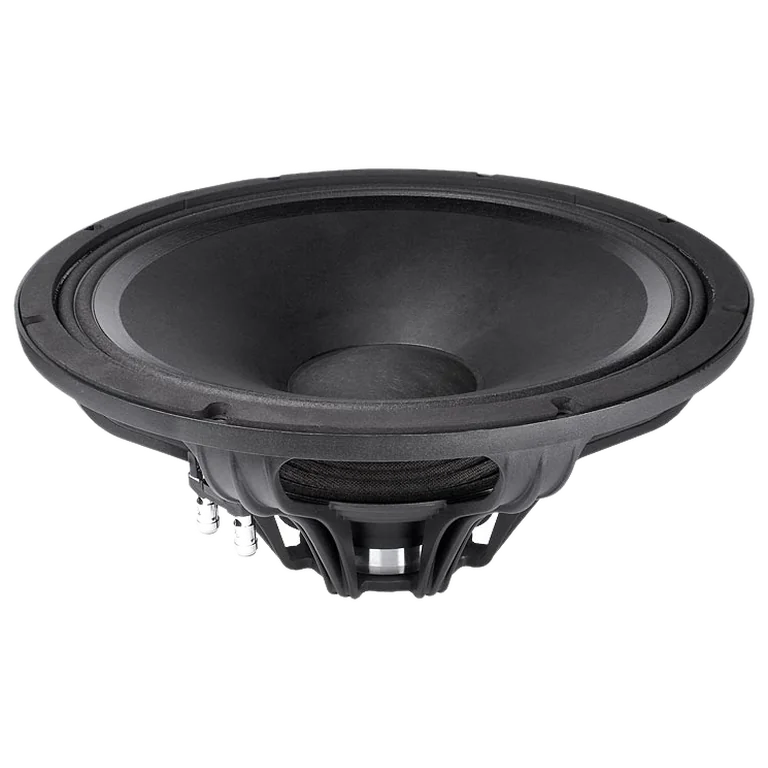

FaitalPRO 15FH500 (8 Ohm) standard | Fs 35 Hz, 96.8 dB, Qts 0.310 | LoudspeakerLab

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.310; Qes: 0.320; Qms: 10.400; Vas: 199.20 L; Sd: 847.0 cm²; Re: 5.10 Ω; Le: 1.30 mH; Sensitivity: 96.8 dB; Nominal Z: 6.5 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 58

Usable passband

Scored passband 57 Hz–2.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~97.8 L · Fb 49 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• bluearan — $175.52 GBP
• parts_express — $413.00 USD
• soundimports — $247.89 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
