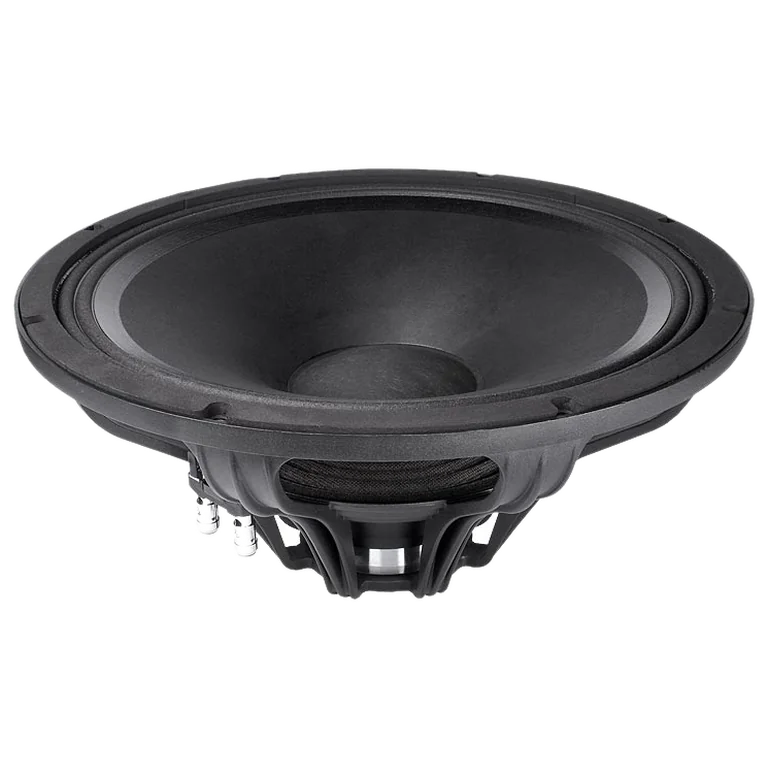

FaitalPRO 15FH500 (16 Ohm) standard | Fs 35 Hz, 95.4 dB, Qts 0.450 | LoudspeakerLab

Name: FaitalPRO 15FH500 (16 Ohm) standard | Fs 35 Hz, 95.4 dB, Qts 0.450 | LoudspeakerLab
Brand: FaitalPRO
SKU: 15FH500 (16 Ohm)
Price: 175.52 GBP
Availability: InStock

FaitalPRO 15FH500 (16 Ohm) standard measurements on LoudspeakerLab. 95.4 dB sensitivity. Fs 35 Hz. Qts 0.450. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.450; Qes: 0.470; Qms: 13.200; Vas: 217.10 L; Sd: 847.0 cm²; Re: 12.70 Ω; Le: 2.00 mH; Sensitivity: 95.4 dB; Nominal Z: 16.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 53

Usable passband

Scored passband 58 Hz–3.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~226.1 L · Fb 35 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $175.52 GBP
parts_express — $413.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
