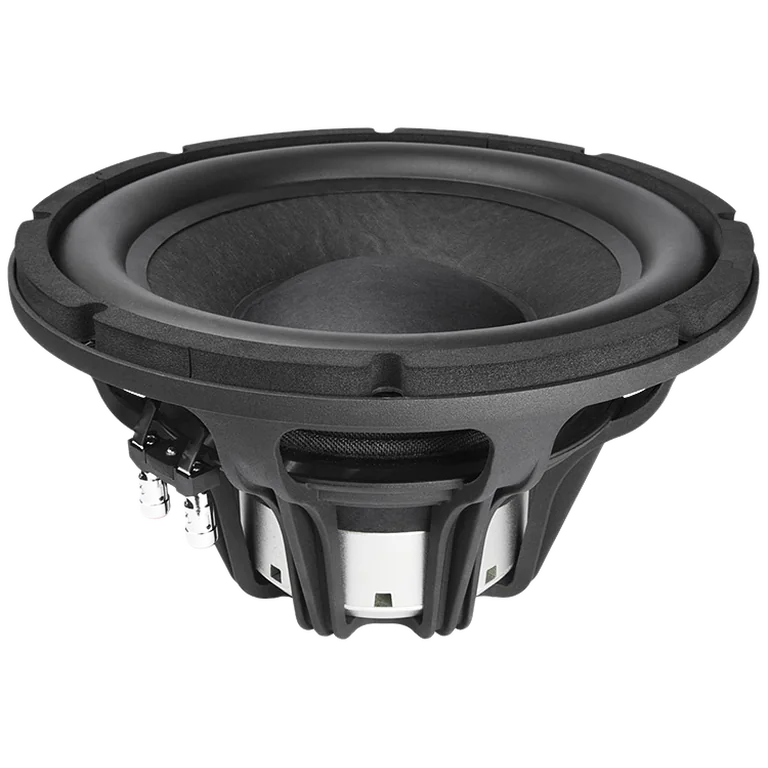

FaitalPRO 12RS1066 (16 Ohm) standard | Fs 45 Hz, 89.5 dB, Qts 0.440 | LoudspeakerLab

Name: FaitalPRO 12RS1066 (16 Ohm) standard | Fs 45 Hz, 89.5 dB, Qts 0.440 | LoudspeakerLab
Brand: FaitalPRO
SKU: 12RS1066 (16 Ohm)
Price: 226.46 GBP
Availability: InStock

FaitalPRO 12RS1066 (16 Ohm) standard measurements on LoudspeakerLab. 89.5 dB sensitivity. Fs 45 Hz. Qts 0.440. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.440; Qes: 0.460; Qms: 11.200; Vas: 28.40 L; Sd: 496.0 cm²; Re: 12.00 Ω; Le: 2.50 mH; Sensitivity: 89.5 dB; Nominal Z: 14.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 63

Usable passband

Scored passband 69 Hz–2.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~28.0 L · Fb 46 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $226.46 GBP
parts_express — $583.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
