FaitalPRO 12HP1060 (8 Ohm) standard | Fs 45 Hz, 90.2 dB, Qts 0.280 | LoudspeakerLab

FaitalPRO 12HP1060 (8 Ohm) standard measurements on LoudspeakerLab. 90.2 dB sensitivity. Fs 45 Hz. Qts 0.280. Evidence grade C+ (57.0/100).

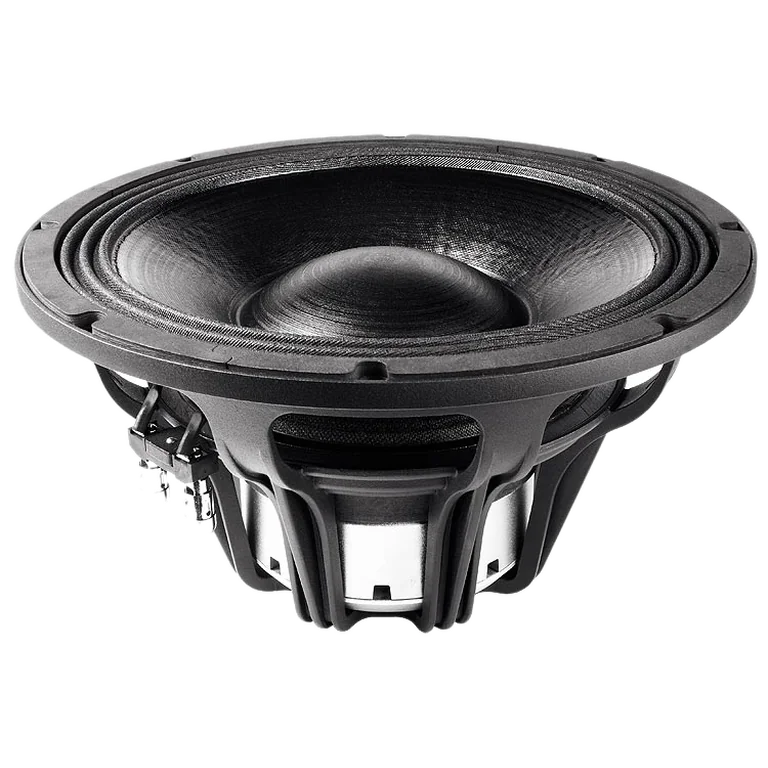

Preview

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.280; Qes: 0.290; Qms: 12.100; Vas: 36.90 L; Sd: 518.0 cm²; Re: 5.00 Ω; Le: 1.38 mH; Sensitivity: 90.2 dB; Nominal Z: 7.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 50

Usable passband

Scored passband 69 Hz–2.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~15.2 L · Fb 70 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
