FaitalPRO 12FH530 (8 Ohm) standard | Fs 45 Hz, 96.1 dB, Qts 0.260 | LoudspeakerLab

FaitalPRO 12FH530 (8 Ohm) standard measurements on LoudspeakerLab. 96.1 dB sensitivity. Fs 45 Hz. Qts 0.260. Evidence grade C+ (57.0/100).

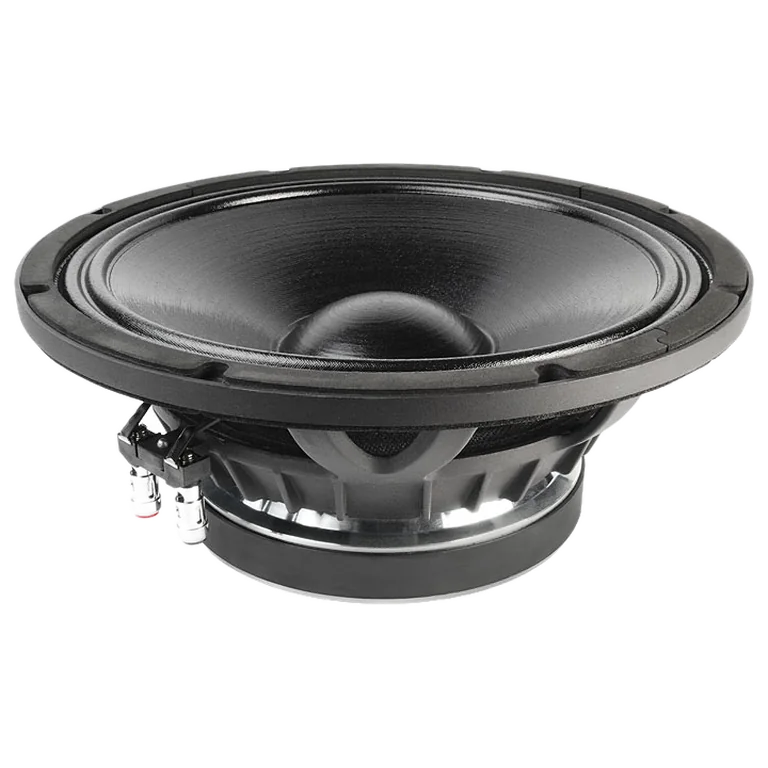

Preview

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.260; Qes: 0.270; Qms: 6.400; Vas: 74.10 L; Sd: 533.0 cm²; Re: 5.10 Ω; Le: 0.80 mH; Sensitivity: 96.1 dB; Nominal Z: 7.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 51

Usable passband

Scored passband 67 Hz–3.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~27.2 L · Fb 76 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
