FaitalPRO 12FH500 (8 Ohm) standard | Fs 45 Hz, 97.3 dB, Qts 0.250 | LoudspeakerLab

FaitalPRO 12FH500 (8 Ohm) standard measurements on LoudspeakerLab. 97.3 dB sensitivity. Fs 45 Hz. Qts 0.250. Evidence grade C+ (57.0/100).

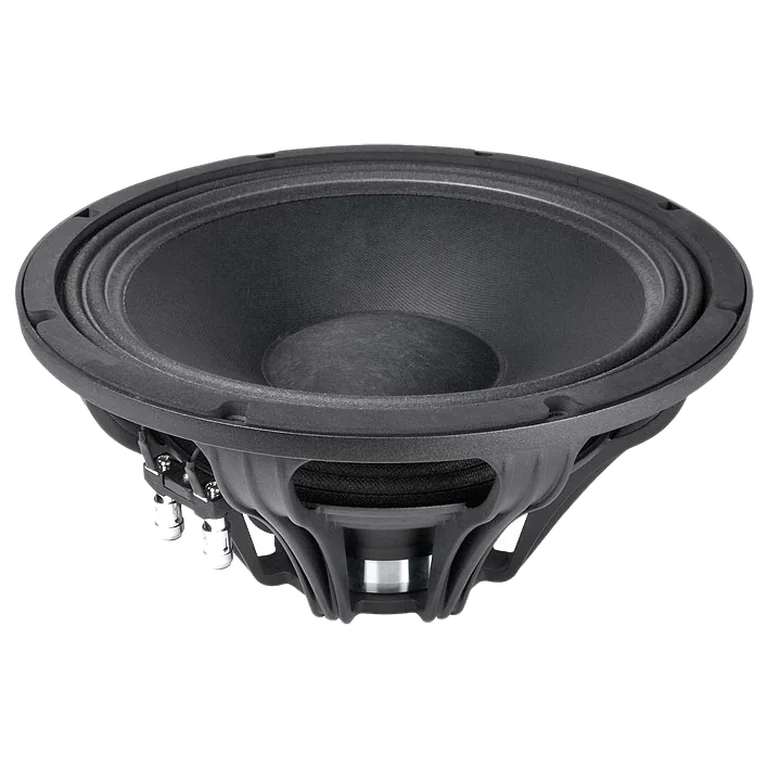

Preview

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.250; Qes: 0.260; Qms: 6.900; Vas: 87.30 L; Sd: 529.0 cm²; Re: 5.10 Ω; Le: 0.83 mH; Sensitivity: 97.3 dB; Nominal Z: 7.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 52

Usable passband

Scored passband 81 Hz–3.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~30.4 L · Fb 78 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
