FaitalPRO 12FH500 (4 Ohm) standard | Fs 45 Hz, 94.4 dB, Qts 0.220 | LoudspeakerLab

FaitalPRO 12FH500 (4 Ohm) standard measurements on LoudspeakerLab. 94.4 dB sensitivity. Fs 45 Hz. Qts 0.220. Evidence grade C+ (57.0/100).

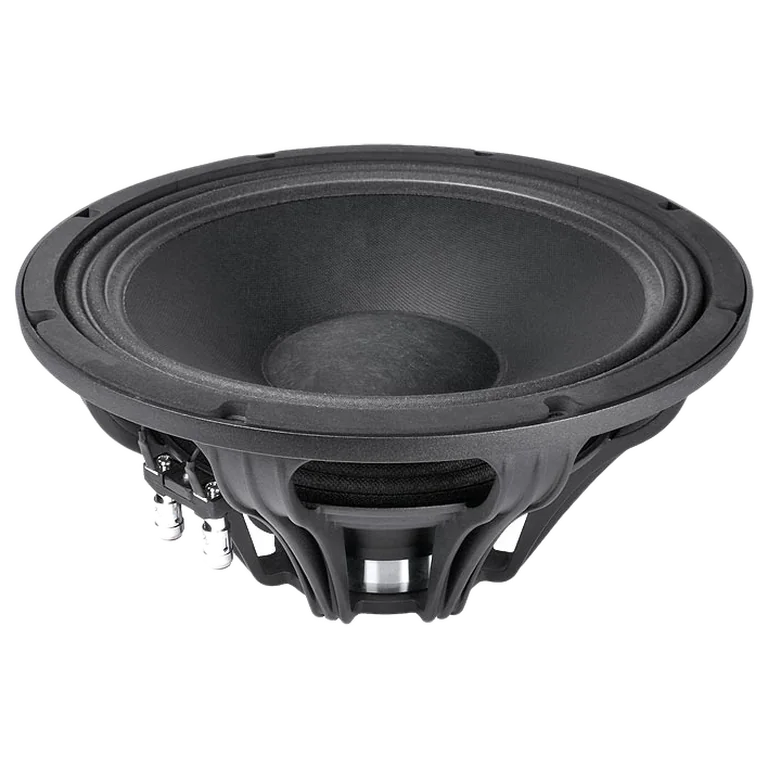

Preview

Thiele-Small parameters

Fs: 45 Hz; Qts: 0.220; Qes: 0.230; Qms: 9.090; Vas: 80.30 L; Sd: 529.0 cm²; Re: 3.30 Ω; Le: 0.63 mH; Sensitivity: 94.4 dB; Nominal Z: 4.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 56

Usable passband

Scored passband 81 Hz–2.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~22.6 L · Fb 91 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
