FaitalPRO 12FE330 (8 Ohm) standard | Fs 33 Hz, 93.8 dB, Qts 0.450 | LoudspeakerLab

FaitalPRO 12FE330 (8 Ohm) standard measurements on LoudspeakerLab. 93.8 dB sensitivity. Fs 33 Hz. Qts 0.450. Evidence grade C+ (57.0/100).

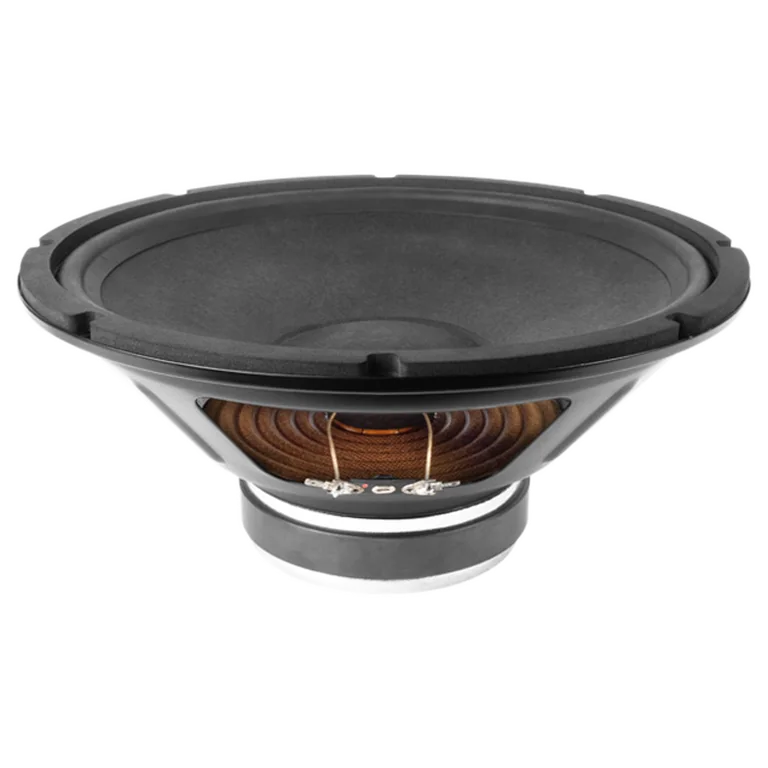

Preview

Thiele-Small parameters

Fs: 33 Hz; Qts: 0.450; Qes: 0.480; Qms: 7.000; Vas: 146.70 L; Sd: 579.0 cm²; Re: 5.30 Ω; Le: 1.10 mH; Sensitivity: 93.8 dB; Nominal Z: 6.3 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 65

Usable passband

Scored passband 52 Hz–2.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~152.8 L · Fb 33 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
