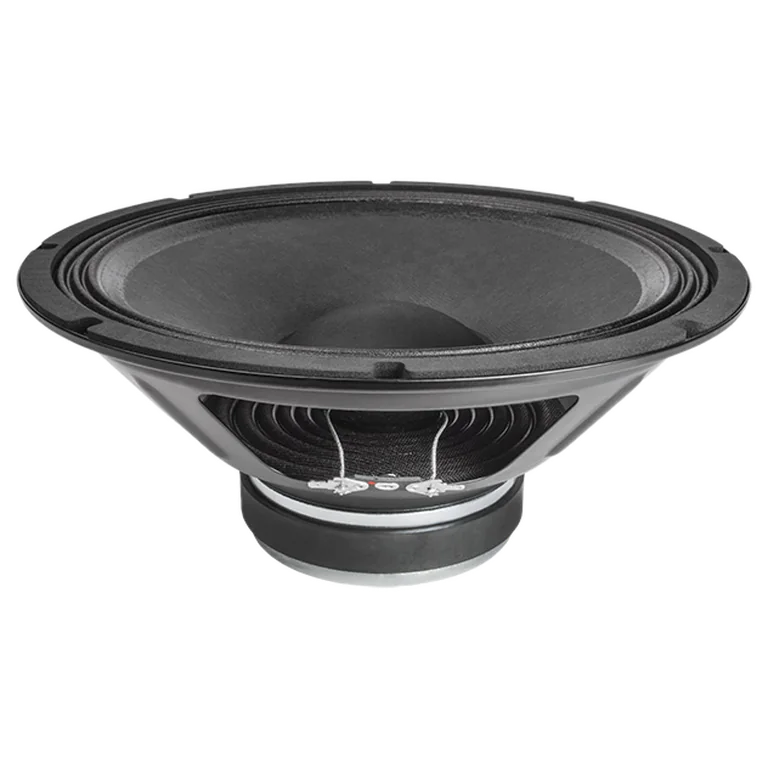

FaitalPRO 12FE300 (8 Ohm) standard | Fs 47 Hz, 95.2 dB, Qts 0.510 | LoudspeakerLab

Name: FaitalPRO 12FE300 (8 Ohm) standard | Fs 47 Hz, 95.2 dB, Qts 0.510 | LoudspeakerLab
Brand: FaitalPRO
SKU: 12FE300 (8 Ohm)
Price: 67.65 GBP
Availability: InStock

FaitalPRO 12FE300 (8 Ohm) standard measurements on LoudspeakerLab. 95.2 dB sensitivity. Fs 47 Hz. Qts 0.510. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 47 Hz; Qts: 0.510; Qes: 0.530; Qms: 15.500; Vas: 83.70 L; Sd: 543.0 cm²; Re: 5.10 Ω; Le: 0.80 mH; Sensitivity: 95.2 dB; Nominal Z: 6.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 57

Usable passband

Scored passband 69 Hz–4.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~115.9 L · Fb 42 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $67.65 GBP
parts_express — $153.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
