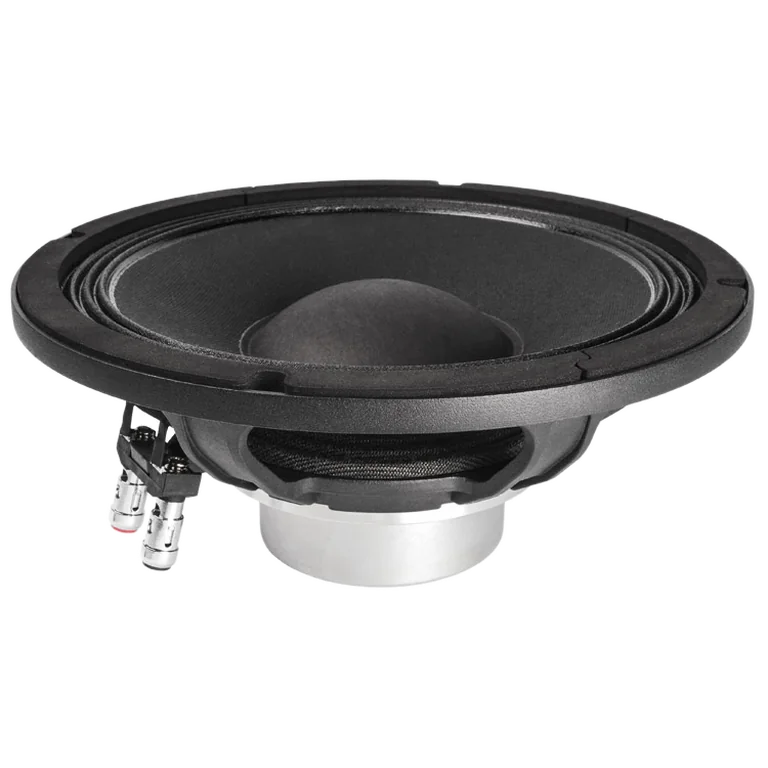

FaitalPRO 10PR320 (16 Ohm) standard | Fs 50 Hz, 95.2 dB, Qts 0.380 | LoudspeakerLab

Name: FaitalPRO 10PR320 (16 Ohm) standard | Fs 50 Hz, 95.2 dB, Qts 0.380 | LoudspeakerLab
Brand: FaitalPRO
SKU: 10PR320 (16 Ohm)
Price: 113.89 GBP
Availability: InStock

FaitalPRO 10PR320 (16 Ohm) standard measurements on LoudspeakerLab. 95.2 dB sensitivity. Fs 50 Hz. Qts 0.380. Evidence grade C+ (57.0/100).

Thiele-Small parameters

Fs: 50 Hz; Qts: 0.380; Qes: 0.430; Qms: 3.300; Vas: 50.60 L; Sd: 347.0 cm²; Re: 11.30 Ω; Le: 0.98 mH; Sensitivity: 95.2 dB; Nominal Z: 13.4 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 48

Usable passband

Scored passband 78 Hz–3.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~36.4 L · Fb 58 Hz

Measurement profiles

spec sheet (spec_sheet)

Where to buy

bluearan — $113.89 GBP
parts_express — $304.00 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

FaitalPRO
