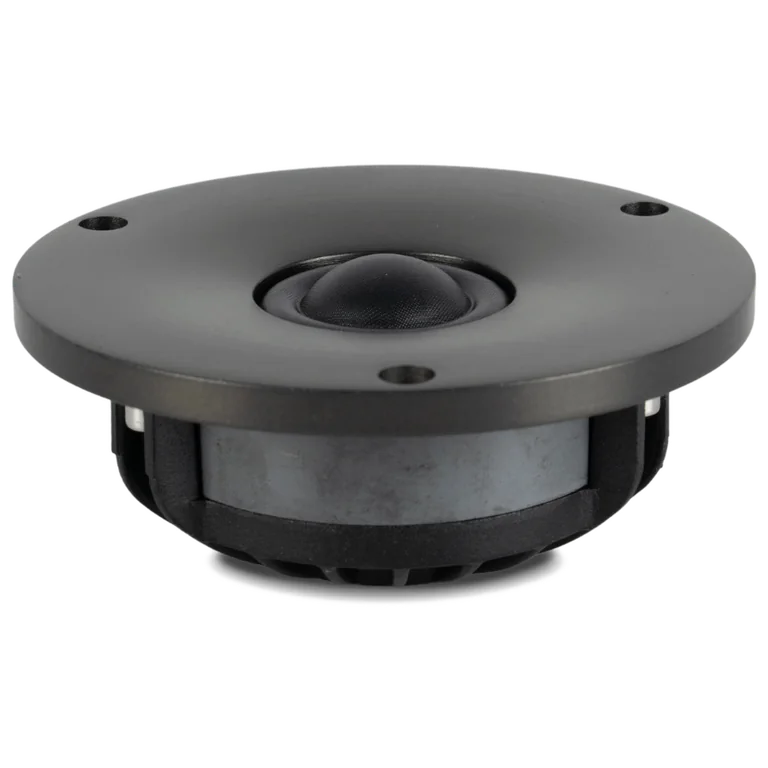

Beyma T25S standard | Fs 296 Hz, 91.9 dB, Qts 0.243 | LoudspeakerLab

Thiele-Small parameters

Fs: 296 Hz; Qts: 0.243; Qes: 0.652; Qms: 0.387; Re: 3.69 Ω; Sensitivity: 91.9 dB; Nominal Z: 3.4 Ω; Measured range: 50-20000 Hz

Driver quality scores

On-axis flatness 72 · DI tracking 48 · DI smoothness 36

Usable passband

Scored passband 588 Hz–17.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $129.75 USD
• solen — $189.65 CAD
• soundimports — $103.26 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (55.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

T25S (4 Ohm)
