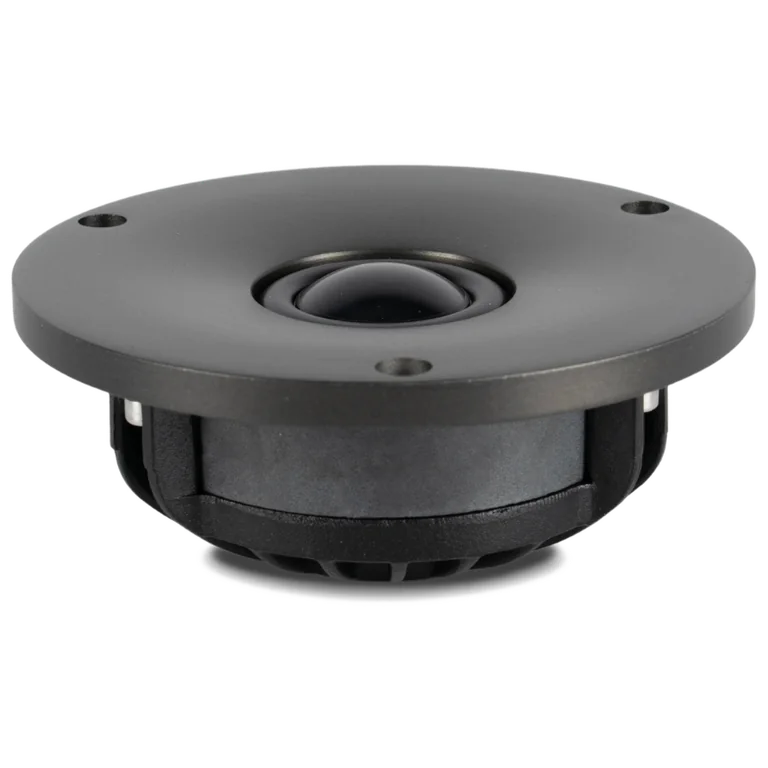

Beyma T25M standard | Fs 296 Hz, 89.9 dB, Qts 0.315 | LoudspeakerLab

Thiele-Small parameters

Fs: 296 Hz; Qts: 0.315; Qes: 0.736; Qms: 0.550; Re: 3.73 Ω; Sensitivity: 89.9 dB; Nominal Z: 3.4 Ω; Measured range: 50-20000 Hz

Driver quality scores

On-axis flatness 77 · DI tracking 81 · DI smoothness 49

Usable passband

Scored passband 588 Hz–6.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $149.25 USD
• solen — $218.14 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (55.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

T25M (4 Ohm)
