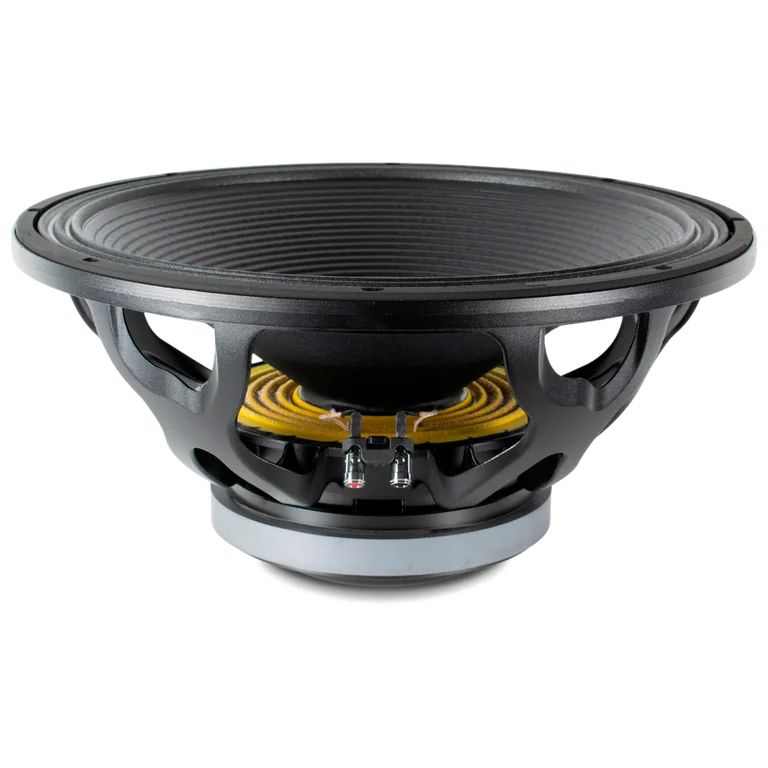

Beyma 18LEX1200Fe (8 Ohm) standard | Fs 32 Hz, 98.2 dB, Qts 0.380 | LoudspeakerLab

Beyma 18LEX1200Fe (8 Ohm) standard measurements on LoudspeakerLab. 98.2 dB sensitivity. Fs 32 Hz. Qts 0.380. Evidence grade C (47.0/100).

Preview

Thiele-Small parameters

Fs: 32 Hz; Qts: 0.380; Qes: 0.390; Qms: 12.200; Vas: 277.00 L; Sd: 1255.0 cm²; Re: 5.30 Ω; Le: 1.21 mH; Sensitivity: 98.2 dB; Nominal Z: 6.9 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 44

Usable passband

Scored passband 53 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~199.0 L · Fb 37 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C (47.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
