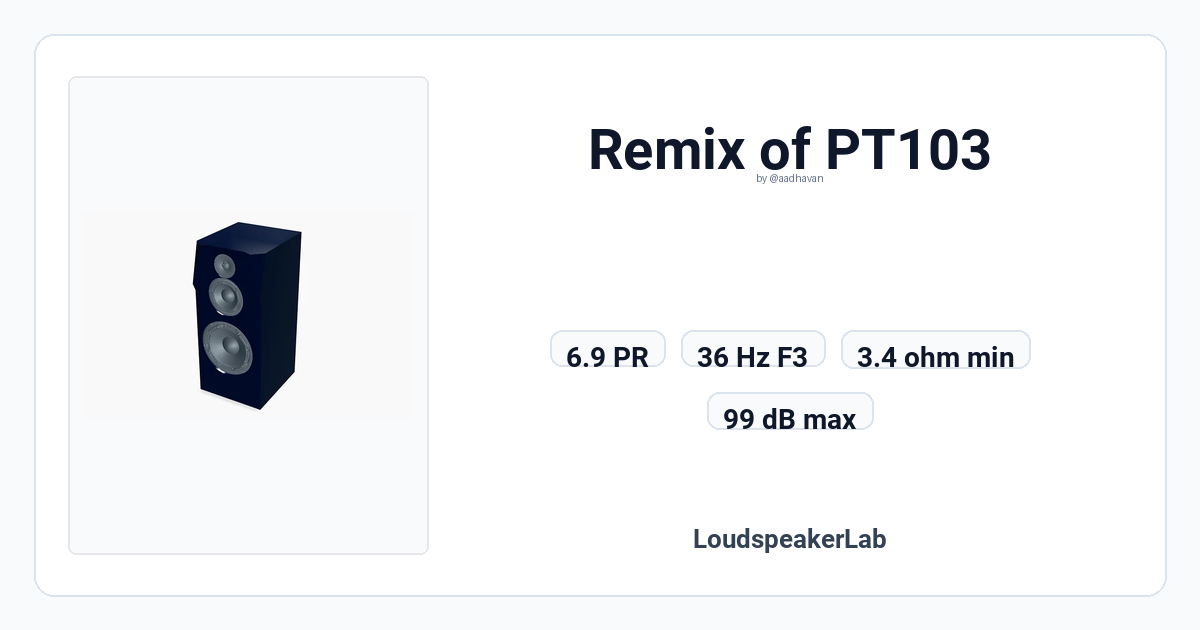

Remix of PT103 - LoudspeakerLab Design

Design summary

Preference rating 6.9 · F3 36 Hz · Max SPL 99 dB at 1 kHz · Min impedance 3.4 Ω · Sensitivity 82.9 dB · Estimated cost USD 2246

Drivers

• Purifi PTT1.3T04-HAG-01 (tweeter)
• Purifi PTT10.0X04-NAB-01 (woofer)
• Purifi PTT6.5X08-NAA-08 (midrange)

Enclosure

Baffle 332 × 746 mm
