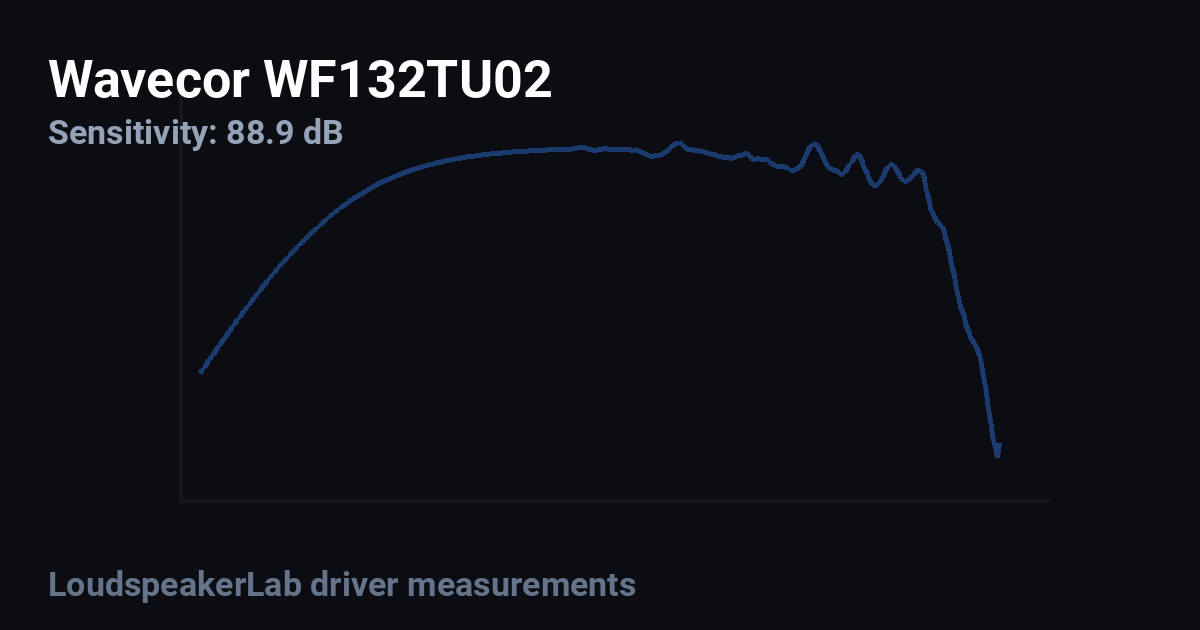

Wavecor WF132TU02 standard | Fs 62 Hz, 88.9 dB, Qts 0.440 | LoudspeakerLab

Thiele-Small parameters

Fs: 62 Hz; Qts: 0.440; Qes: 0.460; Qms: 8.000; Vas: 9.06 L; Sd: 95.0 cm²; Re: 3.20 Ω; Le: 0.23 mH; Sensitivity: 88.9 dB; Nominal Z: 3.6 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 80

Usable passband

Scored passband 93 Hz–10.1 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~8.9 L · Fb 63 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $105.00 USD

Measurement quality

LoudspeakerLab evidence grade: C (46.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Wavecor
