Wavecor WF120BD05 standard | Fs 48 Hz, 93.5 dB, Qts 0.400 | LoudspeakerLab

Thiele-Small parameters

Fs: 48 Hz; Qts: 0.400; Qes: 0.420; Qms: 7.400; Vas: 6.23 L; Sd: 54.0 cm²; Re: 3.20 Ω; Le: 0.09 mH; Sensitivity: 93.5 dB; Nominal Z: 3.7 Ω; Measured range: 20-20000 Hz

Driver quality scores

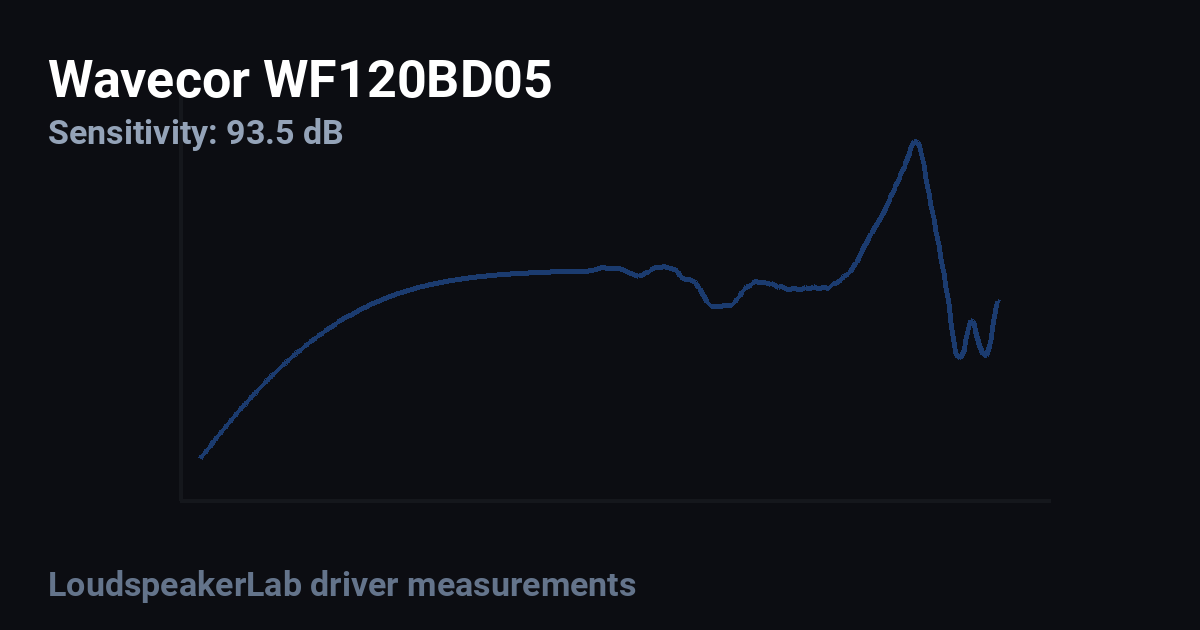

On-axis flatness 81

Usable passband

Scored passband 80 Hz–1.6 kHz

Measurement coverage

Spec-sheet profiles

Recommended enclosure

Vented ~5.0 L · Fb 53 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• parts_express — $109.00 USD
• rumoh — $149.00 EUR
• solen — $151.12 CAD

Measurement quality

LoudspeakerLab evidence grade: C (46.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• Wavecor
