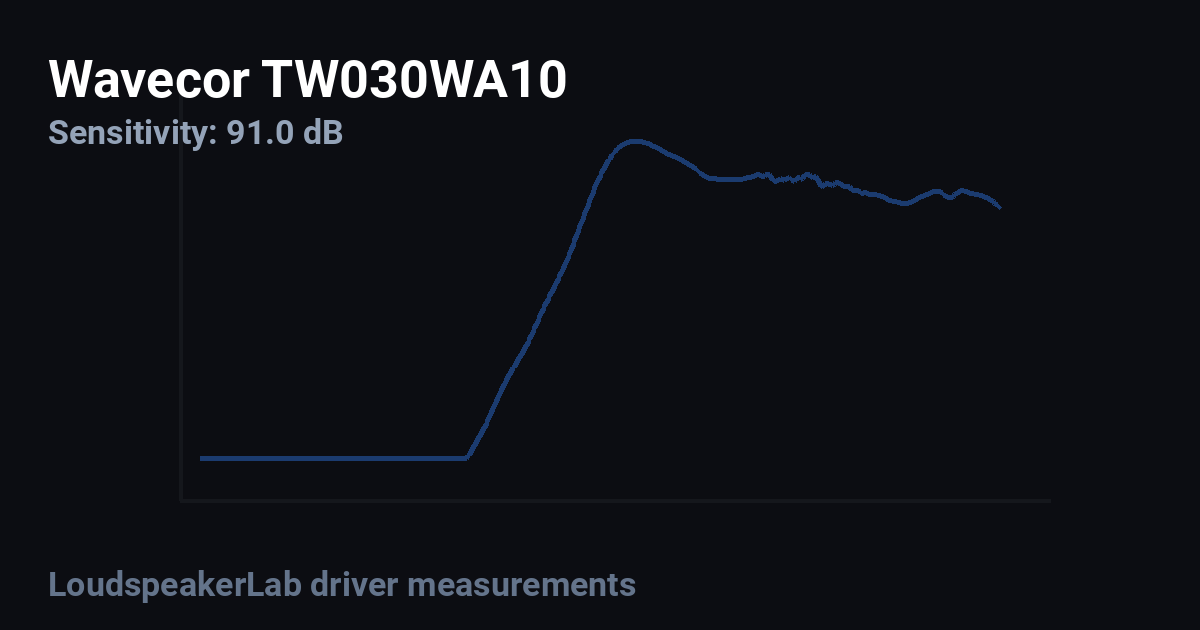

Wavecor TW030WA10 standard | Fs 750 Hz, 91.0 dB, Qts 1.700 | LoudspeakerLab

Thiele-Small parameters

Fs: 750 Hz; Qts: 1.700; Qes: 2.170; Qms: 7.800; Sd: 11.5 cm²; Re: 6.30 Ω; Le: 73.00 mH; Sensitivity: 91.0 dB; Nominal Z: 6.7 Ω; Measured range: 200-20000 Hz

Driver quality scores

On-axis flatness 84

Usable passband

Scored passband 1571 Hz–20.0 kHz

Measurement coverage

Measured profiles

Measurement profiles

• uploaded measurement (measured)

Where to buy

• madisound.com — $28.00 USD
• rumoh — $105.00 EUR
• solen — $53.00 CAD

Measurement quality

LoudspeakerLab evidence grade: B (68.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
