Visaton FRS 8 M 8Ohm standard | Fs 125 Hz, 88.0 dB, Qts 0.490 | LoudspeakerLab

Thiele-Small parameters

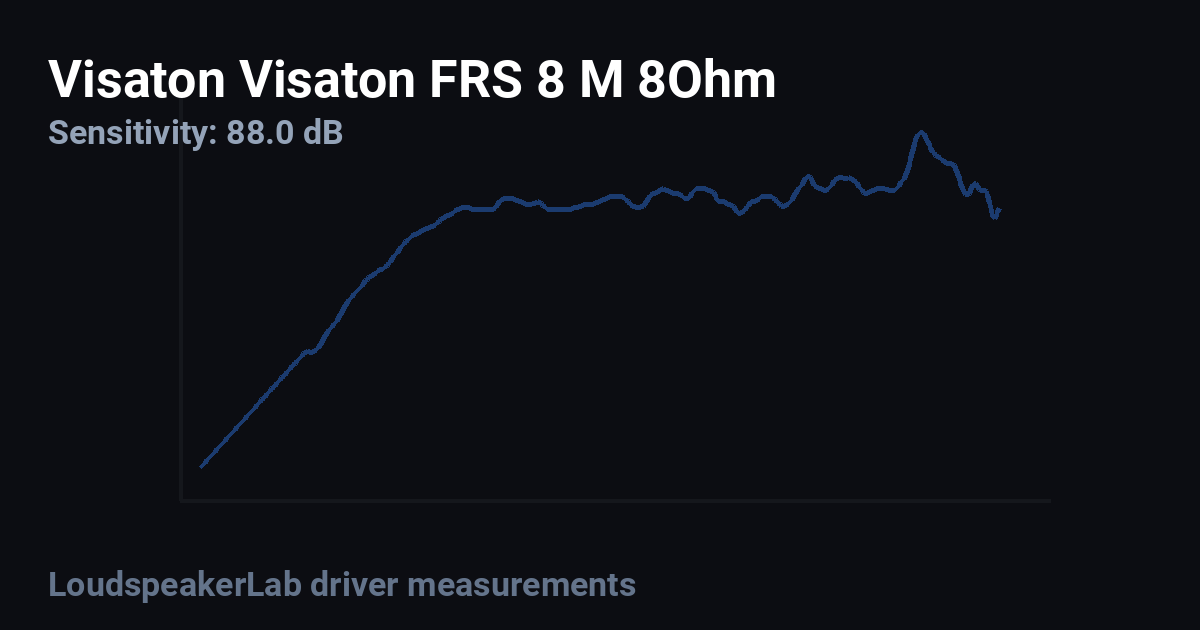

Fs: 125 Hz; Qts: 0.490; Qes: 0.580; Qms: 3.240; Vas: 1.10 L; Sd: 29.0 cm²; Re: 7.20 Ω; Le: 0.30 mH; Sensitivity: 88.0 dB; Nominal Z: 7.7 Ω; Measured range: 20-19897 Hz

Driver quality scores

On-axis flatness 69 · DI tracking 79 · DI smoothness 88

Usable passband

Scored passband 191 Hz–9.0 kHz

Measurement coverage

Measured profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~1.4 L · Fb 115 Hz

Measurement profiles

• uploaded measurement (measured)

Where to buy

• digikey — $21.28 USD

Measurement quality

LoudspeakerLab evidence grade: B+ (79.4/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

Visaton FRS 8 M 8Ohm

Manufacturer

• Visaton
