Silver Flute W17RC38-08 standard | Fs 40 Hz, 89.0 dB, Qts 0.290 | LoudspeakerLab

Silver Flute W17RC38-08 standard measurements on LoudspeakerLab. 89.0 dB sensitivity. Fs 40 Hz. Qts 0.290. Also known as W17RC38-08 draft. Evidence...

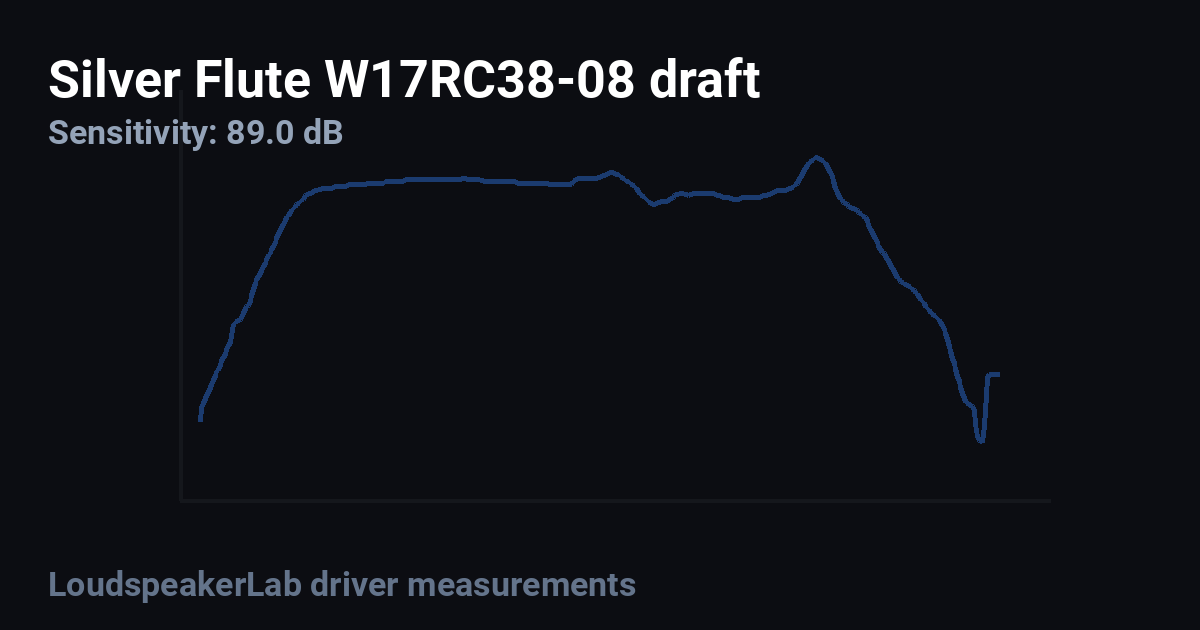

Preview

Thiele-Small parameters

Fs: 40 Hz; Qts: 0.290; Qes: 0.360; Qms: 1.520; Vas: 28.20 L; Sd: 132.0 cm²; Re: 7.30 Ω; Le: 0.94 mH; Sensitivity: 89.0 dB; Nominal Z: 5.6 Ω; Measured range: 10-20000 Hz

Driver quality scores

On-axis flatness 71

Usable passband

Scored passband 46 Hz–6.5 kHz

Measurement coverage

uploaded measurement profiles

Recommended enclosure

Vented ~12.3 L · Fb 61 Hz

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C (33.8/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Also known as

W17RC38-08 draft
