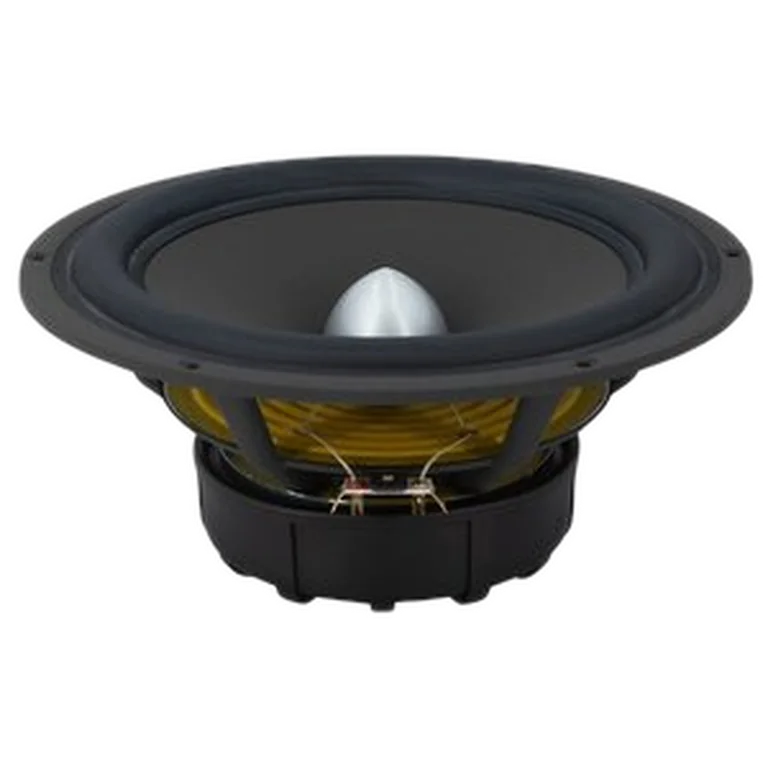

SEAS W26FX002 standard | Fs 31 Hz, 89.0 dB, Qts 0.390 | LoudspeakerLab

Thiele-Small parameters

Fs: 31 Hz; Qts: 0.390; Qes: 0.470; Qms: 2.550; Vas: 87.00 L; Sd: 330.0 cm²; Re: 6.20 Ω; Le: 0.81 mH; Sensitivity: 89.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-19960 Hz

Driver quality scores

On-axis flatness 54 · DI tracking 41 · DI smoothness 41

Usable passband

Scored passband 68 Hz–2.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~66.1 L · Fb 35 Hz

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• Seas 2 WATT/Puppy clone

Where to buy

• audioxcel — $617.45 EUR
• madisound — $540.10 USD
• rumoh — $519.00 EUR
• solen — $941.37 CAD
• soundimports — $454.50 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
