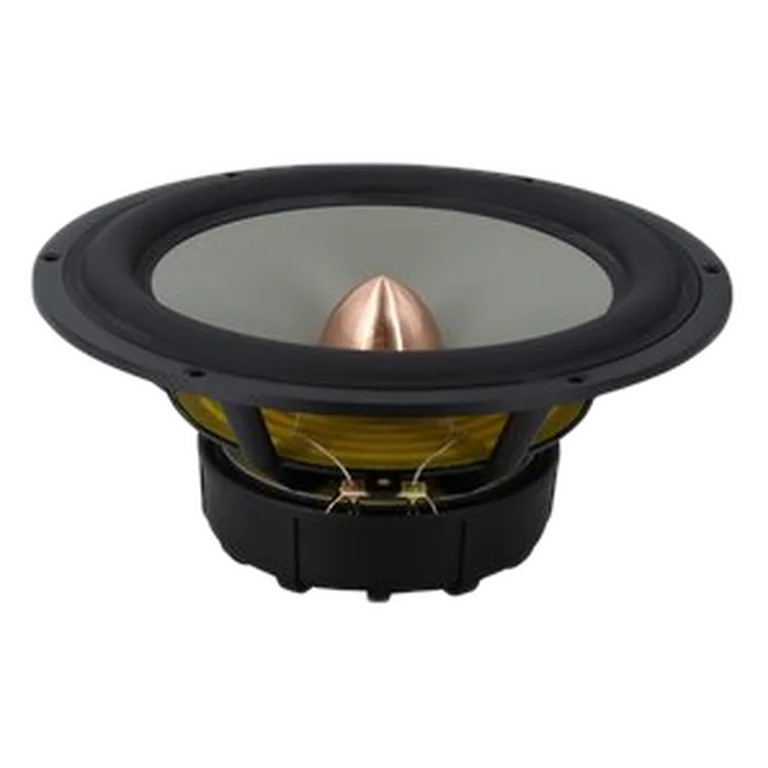

SEAS W26FX001 standard | Fs 20 Hz, 87.0 dB, Qts 0.350 | LoudspeakerLab

Thiele-Small parameters

Fs: 20 Hz; Qts: 0.350; Qes: 0.410; Qms: 2.340; Vas: 162.00 L; Sd: 330.0 cm²; Re: 6.30 Ω; Le: 1.43 mH; Sensitivity: 87.0 dB; Nominal Z: 8.0 Ω; Measured range: 18-20000 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 84 · DI smoothness 76

Usable passband

Scored passband 49 Hz–1.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~100.0 L · Fb 25 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $629.95 EUR
• madisound — $708.90 USD
• rumoh — $621.00 EUR
• solen — $1066.13 CAD
• soundimports — $520.62 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
