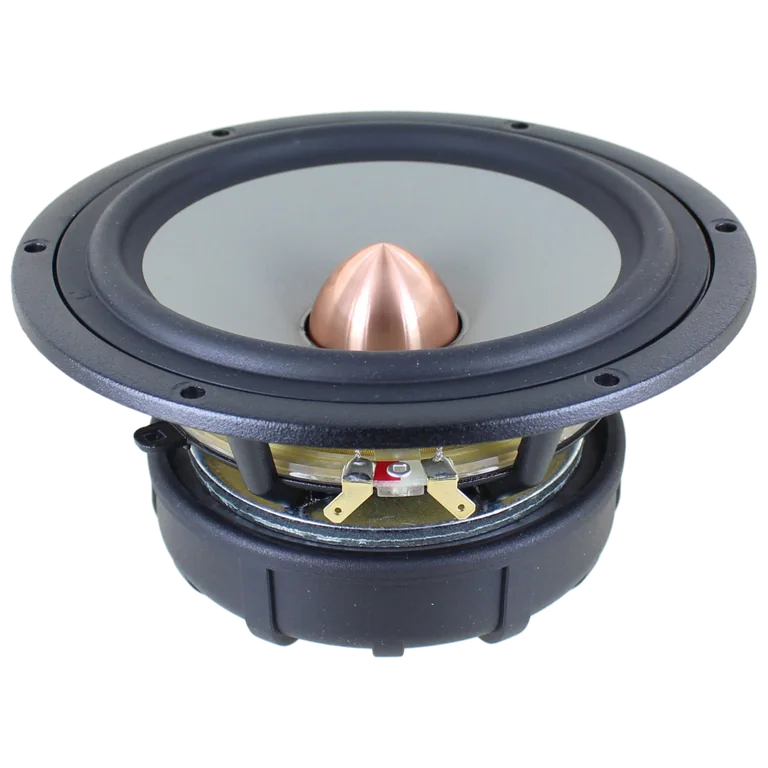

SEAS W18EX001 standard | Fs 34 Hz, 88.0 dB, Qts 0.260 | LoudspeakerLab

Thiele-Small parameters

Fs: 34 Hz; Qts: 0.260; Qes: 0.300; Qms: 1.800; Vas: 30.00 L; Re: 6.10 Ω; Le: 0.65 mH; Sensitivity: 88.0 dB; Nominal Z: 8.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 62 · DI tracking 50 · DI smoothness 51

Usable passband

Scored passband 100 Hz–3.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~11.0 L · Fb 57 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• madisound — $467.90 USD
• rumoh — $449.00 EUR
• solen — $679.63 CAD
• soundimports — $371.86 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.6/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
