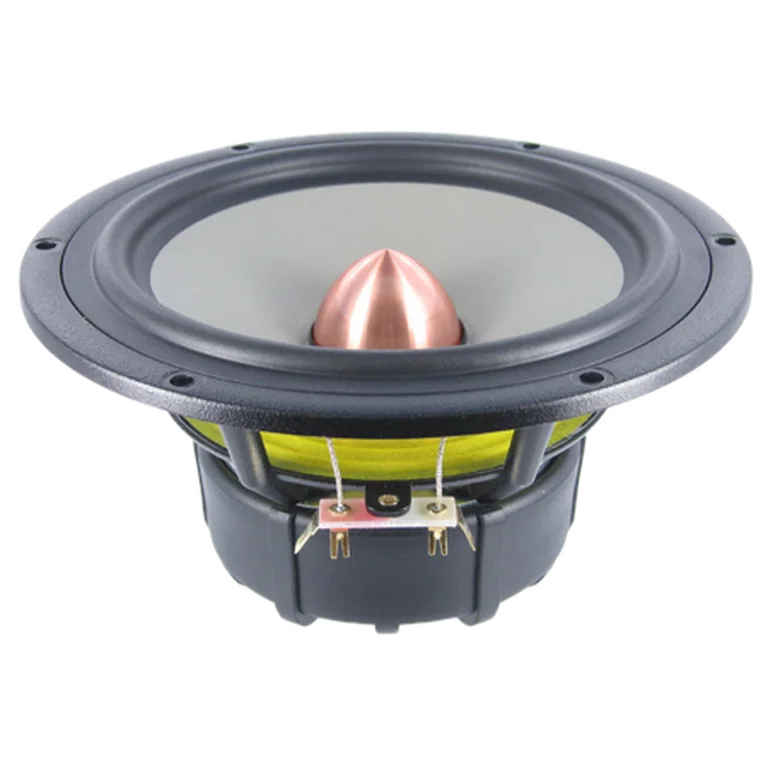

SEAS W18E001 standard | Fs 34 Hz, 86.0 dB, Qts 0.420 | LoudspeakerLab

Thiele-Small parameters

Fs: 34 Hz; Qts: 0.420; Qes: 0.490; Qms: 2.910; Vas: 30.00 L; Sd: 126.0 cm²; Re: 6.10 Ω; Le: 0.65 mH; Sensitivity: 86.0 dB; Nominal Z: 8.0 Ω; Measured range: 19-20000 Hz

Driver quality scores

On-axis flatness 56 · DI tracking 37 · DI smoothness 48

Usable passband

Scored passband 63 Hz–3.8 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~26.6 L · Fb 36 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $427.45 EUR
• madisound — $361.50 USD
• rumoh — $449.00 EUR
• solen — $669.52 CAD
• soundimports — $371.86 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
