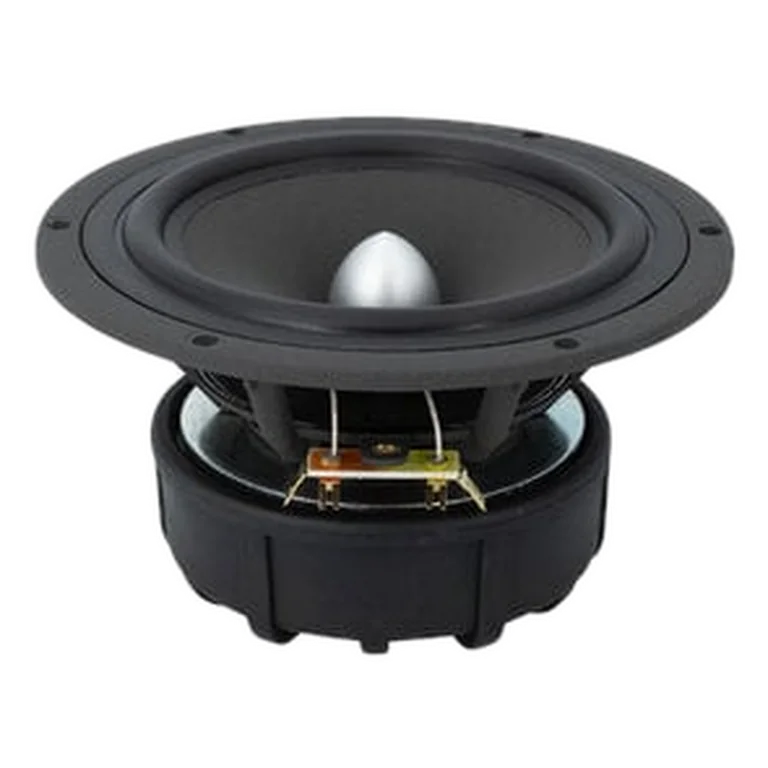

SEAS W15LY001 standard | Fs 49 Hz, 86.5 dB, Qts 0.450 | LoudspeakerLab

Thiele-Small parameters

Fs: 49 Hz; Qts: 0.450; Qes: 0.560; Qms: 2.210; Vas: 12.00 L; Sd: 75.0 cm²; Re: 5.70 Ω; Le: 0.30 mH; Sensitivity: 86.5 dB; Nominal Z: 8.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 55 · DI tracking 0 · DI smoothness 16

Usable passband

Scored passband 93 Hz–12.2 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~12.5 L · Fb 49 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $237.45 EUR
• madisound — $251.60 USD
• rumoh — $249.00 EUR
• solen — $376.39 CAD
• soundimports — $206.57 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
