SEAS W12CY006 standard | Fs 72 Hz, 85.0 dB, Qts 0.400 | LoudspeakerLab

SEAS W12CY006 standard measurements on LoudspeakerLab. 85.0 dB sensitivity. Fs 72 Hz. Qts 0.400. Evidence grade C+ (57.0/100).

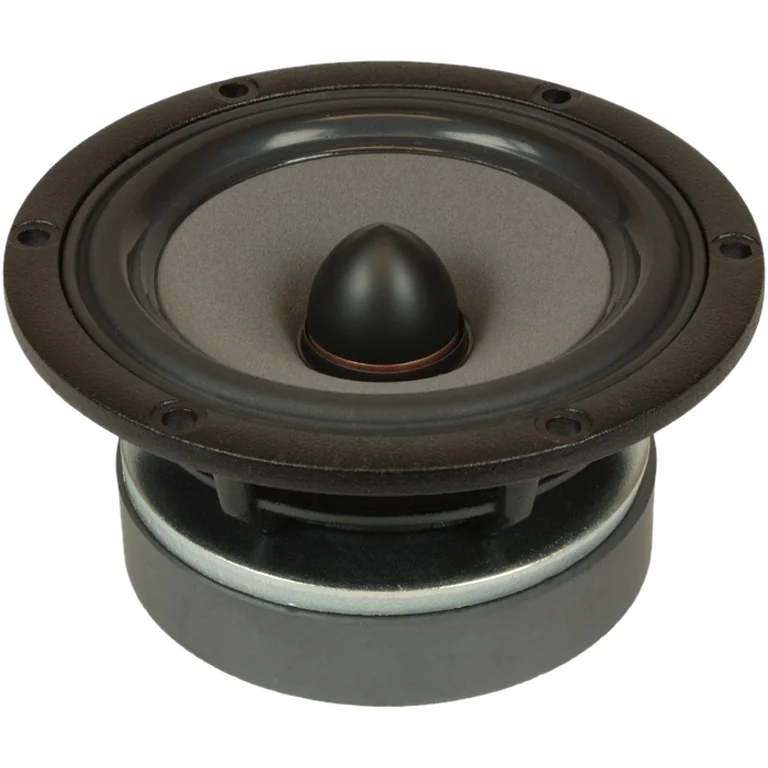

Preview

Thiele-Small parameters

Fs: 72 Hz; Qts: 0.400; Qes: 0.490; Qms: 2.200; Vas: 3.00 L; Sd: 50.0 cm²; Re: 5.60 Ω; Le: 0.27 mH; Sensitivity: 85.0 dB; Nominal Z: 8.0 Ω; Measured range: 24-16657 Hz

Driver quality scores

On-axis flatness 55 · DI tracking 8 · DI smoothness 51

Usable passband

Scored passband 135 Hz–5.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.
