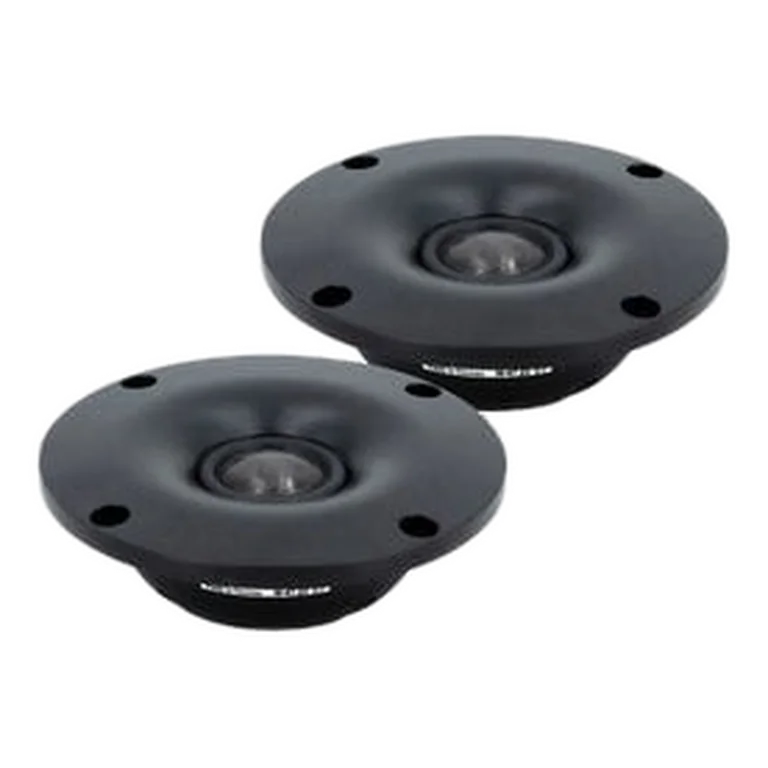

SEAS T29X001 standard | Fs 515 Hz, 91.0 dB, Qts 0.856 | LoudspeakerLab

Thiele-Small parameters

Fs: 515 Hz; Qts: 0.856; Qes: 1.440; Qms: 2.113; Sd: 8.0 cm²; Re: 3.60 Ω; Le: 0.01 mH; Sensitivity: 91.0 dB; Nominal Z: 4.0 Ω; Measured range: 112-20000 Hz

Driver quality scores

On-axis flatness 76

Usable passband

Scored passband 1048 Hz–16.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $854.95 EUR
• madisound — $437.00 USD
• solen — $634.68 CAD
• soundimports — $743.76 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
