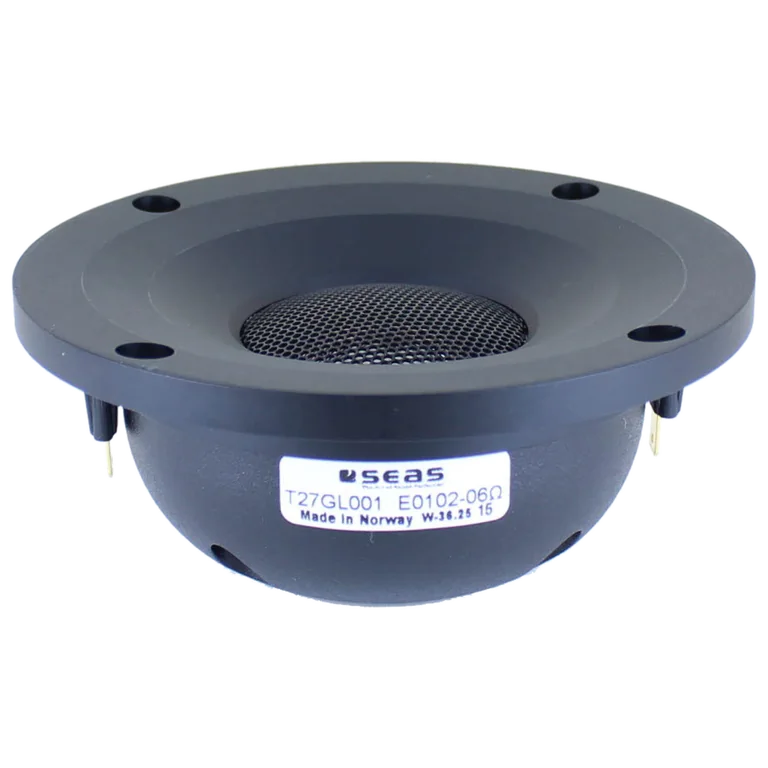

SEAS T27GL001-DXT standard | Fs 940 Hz, 94.0 dB, Qts 0.559 | LoudspeakerLab

Thiele-Small parameters

Fs: 940 Hz; Qts: 0.559; Qes: 1.272; Qms: 0.998; Sd: 7.5 cm²; Re: 4.40 Ω; Le: 0.02 mH; Sensitivity: 94.0 dB; Nominal Z: 6.0 Ω; Measured range: 105-20000 Hz

Driver quality scores

On-axis flatness 69

Usable passband

Scored passband 1923 Hz–7.3 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• madisound — $539.50 USD
• solen — $783.64 CAD
• soundimports — $549.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
