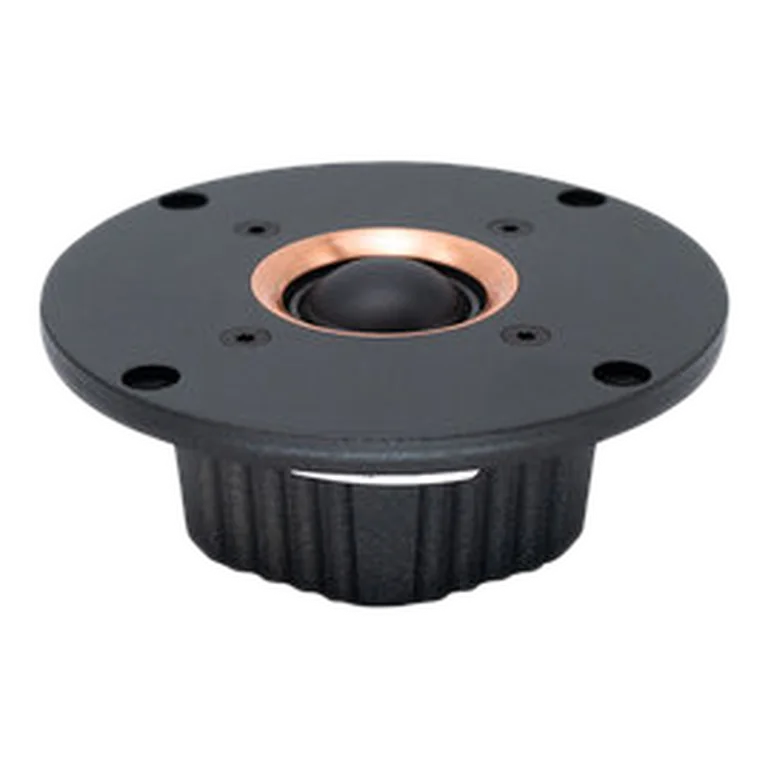

SEAS T25CF002 standard | Fs 500 Hz, 89.0 dB, Qts 0.673 | LoudspeakerLab

Thiele-Small parameters

Fs: 500 Hz; Qts: 0.673; Qes: 1.166; Qms: 1.593; Sd: 7.0 cm²; Re: 4.60 Ω; Le: 0.05 mH; Sensitivity: 89.0 dB; Nominal Z: 6.0 Ω; Measured range: 100-19738 Hz

Driver quality scores

On-axis flatness 80 · DI tracking 23 · DI smoothness 29

Usable passband

Scored passband 1004 Hz–12.1 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Public designs

1 public loudspeaker design on LoudspeakerLab use this driver.

• Seas 2 WATT/Puppy clone

Where to buy

• audioxcel — $474.95 EUR
• madisound — $569.50 USD
• rumoh — $499.00 EUR
• solen — $852.00 CAD
• soundimports — $499.95 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
