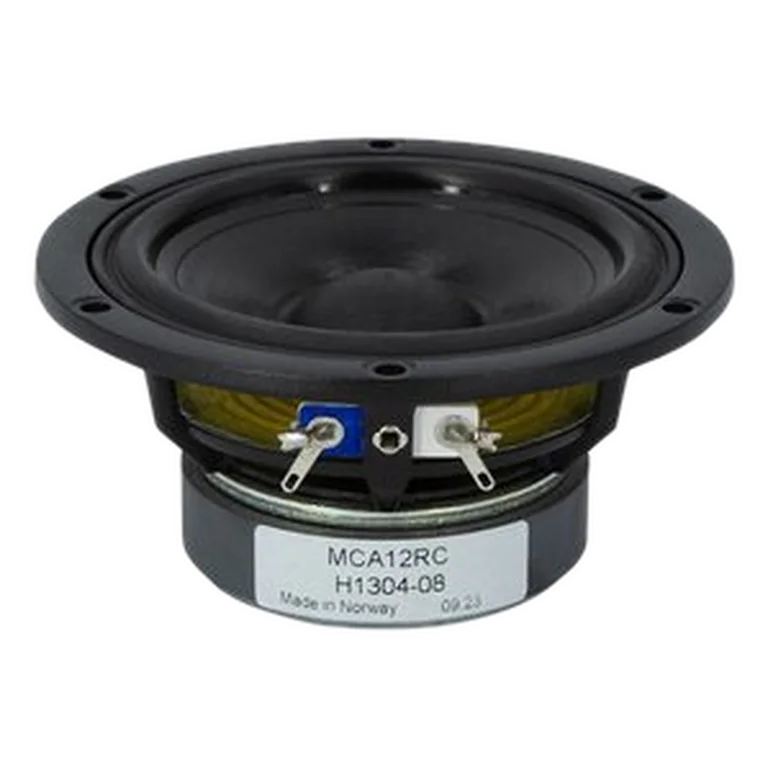

SEAS MCA12RC standard | Fs 68 Hz, 86.0 dB, Qts 0.560 | LoudspeakerLab

Thiele-Small parameters

Fs: 68 Hz; Qts: 0.560; Qes: 0.740; Qms: 2.420; Vas: 5.00 L; Sd: 55.0 cm²; Re: 6.30 Ω; Le: 0.31 mH; Sensitivity: 86.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-20000 Hz

Driver quality scores

On-axis flatness 71 · DI tracking 34 · DI smoothness 46

Usable passband

Scored passband 101 Hz–7.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~8.6 L · Fb 57 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $109.95 EUR
• hificollective — $76.59 GBP
• loudspeakershop — $524.90 PLN
• madisound — $101.30 USD
• rumoh — $91.37 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
