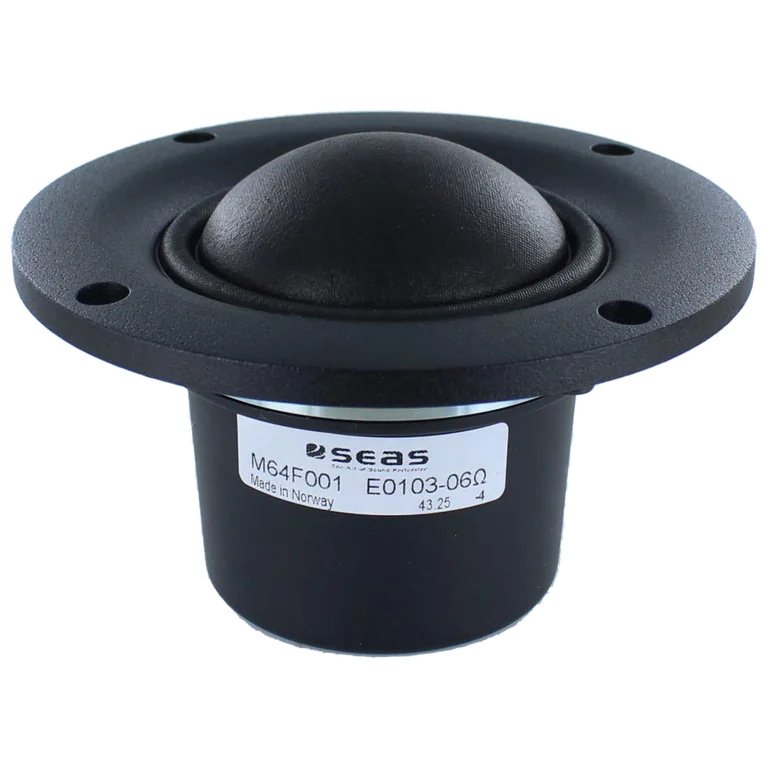

SEAS M64F001 standard | Fs 377 Hz, 92.0 dB, Qts 0.681 | LoudspeakerLab

Thiele-Small parameters

Fs: 377 Hz; Qts: 0.681; Qes: 1.195; Qms: 1.584; Sd: 41.2 cm²; Re: 4.80 Ω; Le: 0.13 mH; Sensitivity: 92.0 dB; Nominal Z: 6.0 Ω; Measured range: 105-20000 Hz

Driver quality scores

On-axis flatness 74 · DI tracking 0 · DI smoothness 12

Usable passband

Scored passband 588 Hz–4.6 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• madisound — $295.40 USD
• solen — $505.93 CAD

Measurement quality

LoudspeakerLab evidence grade: C+ (56.2/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
