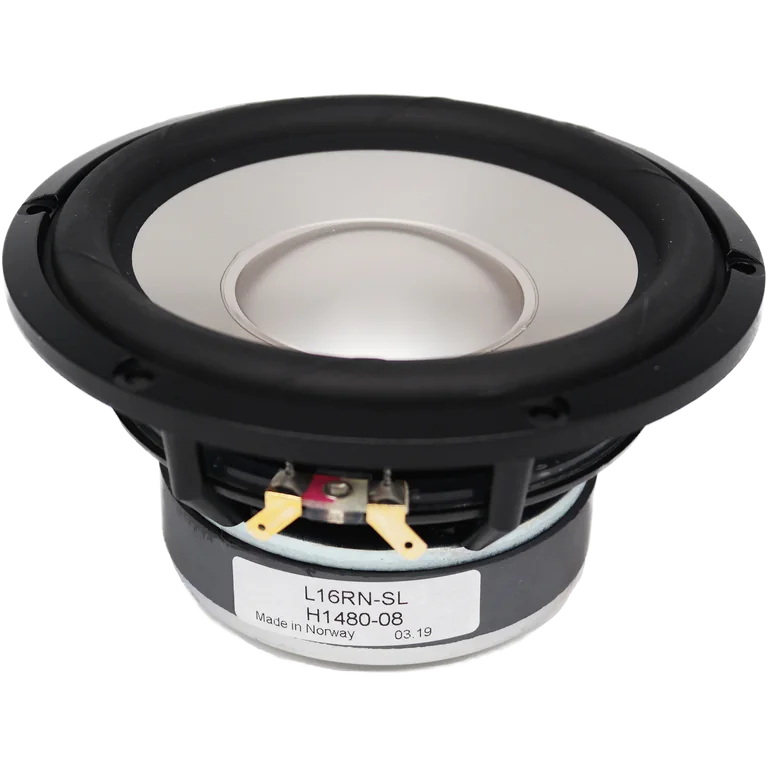

SEAS L16RN standard | Fs 37 Hz, 84.0 dB, Qts 0.450 | LoudspeakerLab

Thiele-Small parameters

Fs: 37 Hz; Qts: 0.450; Qes: 0.550; Qms: 2.480; Vas: 19.00 L; Sd: 104.0 cm²; Re: 6.00 Ω; Le: 0.64 mH; Sensitivity: 84.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-19736 Hz

Driver quality scores

On-axis flatness 64 · DI tracking 79 · DI smoothness 53

Usable passband

Scored passband 71 Hz–2.9 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~19.8 L · Fb 37 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• soundimports — $123.93 EUR
• solen — $220.51 CAD
• madisound — $148.60 USD

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
