SEAS L0018 standard | Fs 64 Hz, 90.0 dB, Qts 0.580 | LoudspeakerLab

SEAS L0018 standard measurements on LoudspeakerLab. 90.0 dB sensitivity. Fs 64 Hz. Qts 0.580. Evidence grade C+ (57.0/100).

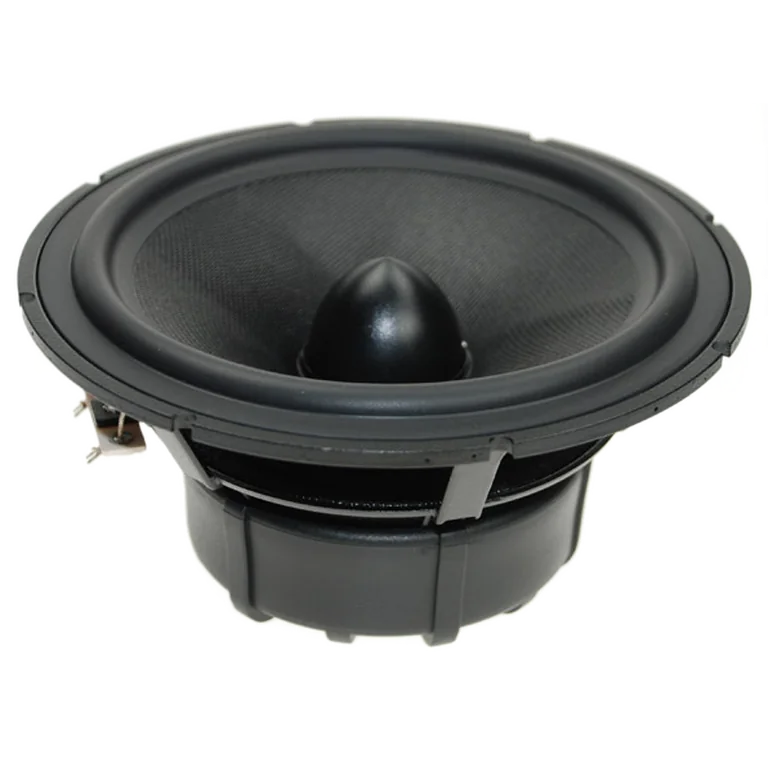

Preview

Thiele-Small parameters

Fs: 64 Hz; Qts: 0.580; Qes: 0.650; Qms: 5.490; Vas: 8.00 L; Sd: 126.0 cm²; Re: 3.30 Ω; Le: 0.78 mH; Sensitivity: 90.0 dB; Nominal Z: 4.0 Ω; Measured range: 20-20000 Hz

Driver quality scores

On-axis flatness 78 · DI tracking 0 · DI smoothness 43

Usable passband

Scored passband 98 Hz–3.7 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Measurement profiles

Where to buy

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer
