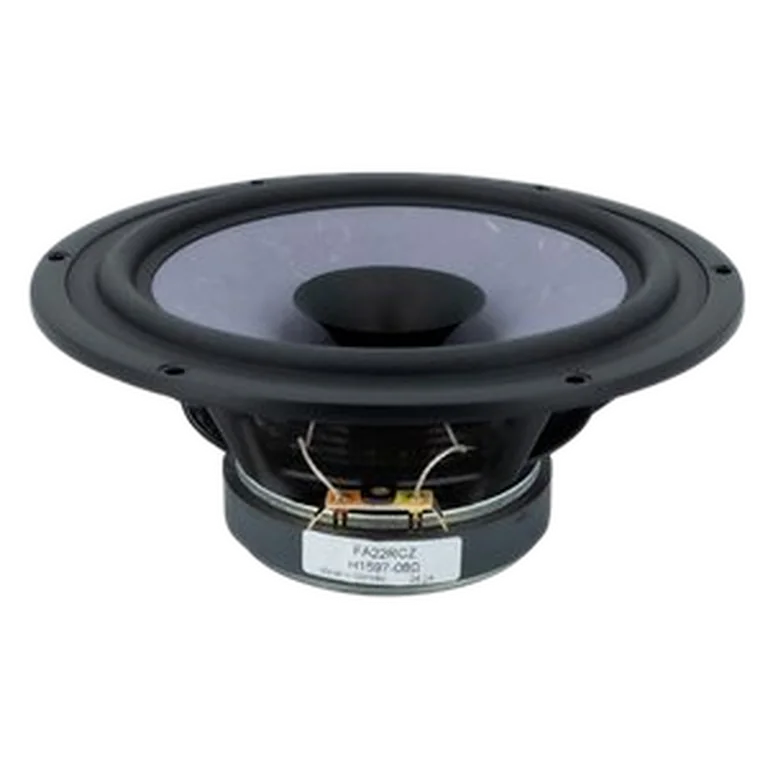

SEAS FA22RCZ standard | Fs 30 Hz, 94.0 dB, Qts 0.350 | LoudspeakerLab

Thiele-Small parameters

Fs: 30 Hz; Qts: 0.350; Qes: 0.380; Qms: 4.360; Vas: 134.00 L; Sd: 222.0 cm²; Re: 5.70 Ω; Le: 0.09 mH; Sensitivity: 94.0 dB; Nominal Z: 8.0 Ω; Measured range: 21-20000 Hz

Driver quality scores

On-axis flatness 48 · DI tracking 0 · DI smoothness 0

Usable passband

Scored passband 94 Hz–20.0 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~82.7 L · Fb 38 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $227.95 EUR
• blackdotaudio — $1226.50 PLN
• loudspeakershop — $1215.83 PLN
• madisound — $240.20 USD
• rumoh — $239.00 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
