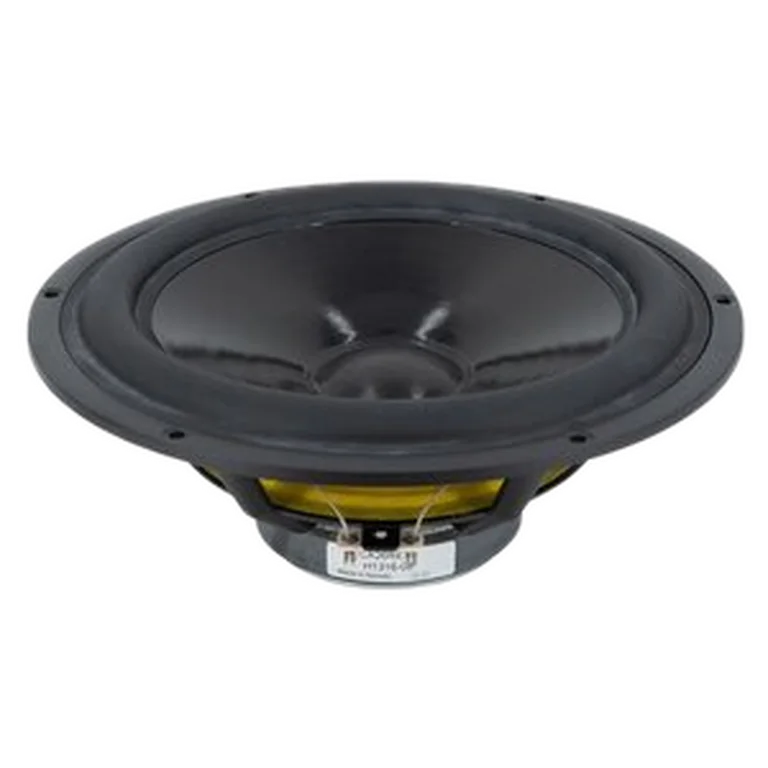

SEAS CA26RE4X standard | Fs 25 Hz, 91.0 dB, Qts 0.280 | LoudspeakerLab

Thiele-Small parameters

Fs: 25 Hz; Qts: 0.280; Qes: 0.300; Qms: 3.990; Vas: 164.00 L; Sd: 350.0 cm²; Re: 6.10 Ω; Le: 3.08 mH; Sensitivity: 91.0 dB; Nominal Z: 8.0 Ω; Measured range: 20-12722 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 44 · DI smoothness 56

Usable passband

Scored passband 58 Hz–2.4 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~67.4 L · Fb 39 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $284.95 EUR
• hificollective — $143.30 GBP
• loudspeakershop — $1326.14 PLN
• madisound — $255.60 USD
• rumoh — $284.00 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
