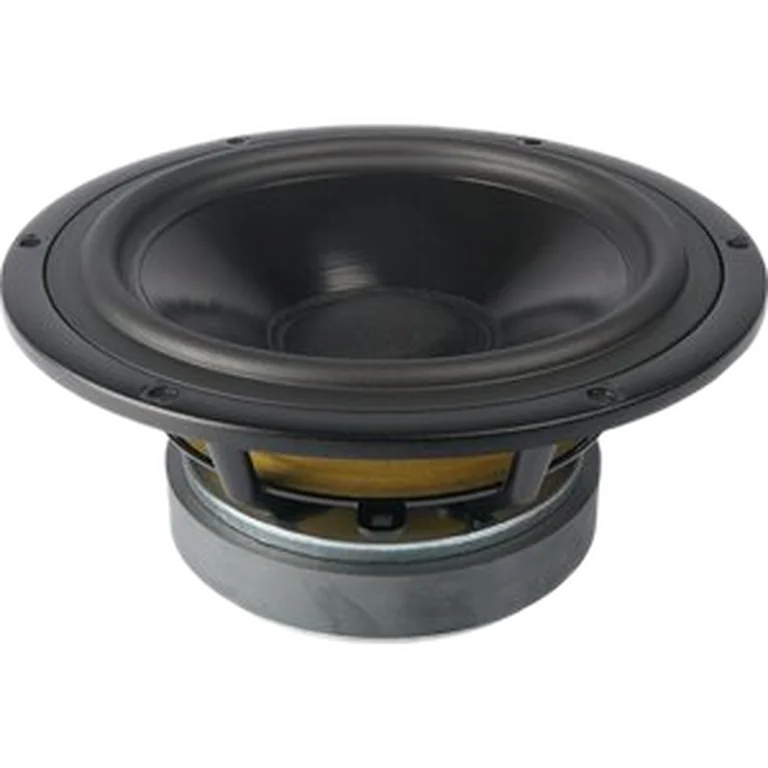

SEAS CA18RNX standard | Fs 35 Hz, 88.5 dB, Qts 0.310 | LoudspeakerLab

Thiele-Small parameters

Fs: 35 Hz; Qts: 0.310; Qes: 0.370; Qms: 1.900; Vas: 33.00 L; Sd: 136.0 cm²; Re: 5.80 Ω; Le: 1.20 mH; Sensitivity: 88.5 dB; Nominal Z: 8.0 Ω; Measured range: 20-19961 Hz

Driver quality scores

On-axis flatness 66 · DI tracking 45 · DI smoothness 45

Usable passband

Scored passband 93 Hz–3.5 kHz

Measurement coverage

Spec-sheet profiles · Off-axis H/V response data available.

Recommended enclosure

Vented ~16.2 L · Fb 49 Hz

Measurement profiles

• spec sheet (spec_sheet)

Where to buy

• audioxcel — $129.95 EUR
• blackdotaudio — $681.24 PLN
• loudspeakershop — $675.32 PLN
• madisound — $133.30 USD
• rumoh — $129.39 EUR

Measurement quality

LoudspeakerLab evidence grade: C+ (57.0/100). Based on measurement provenance, off-axis data, distortion, and T/S completeness.

Manufacturer

• SEAS
